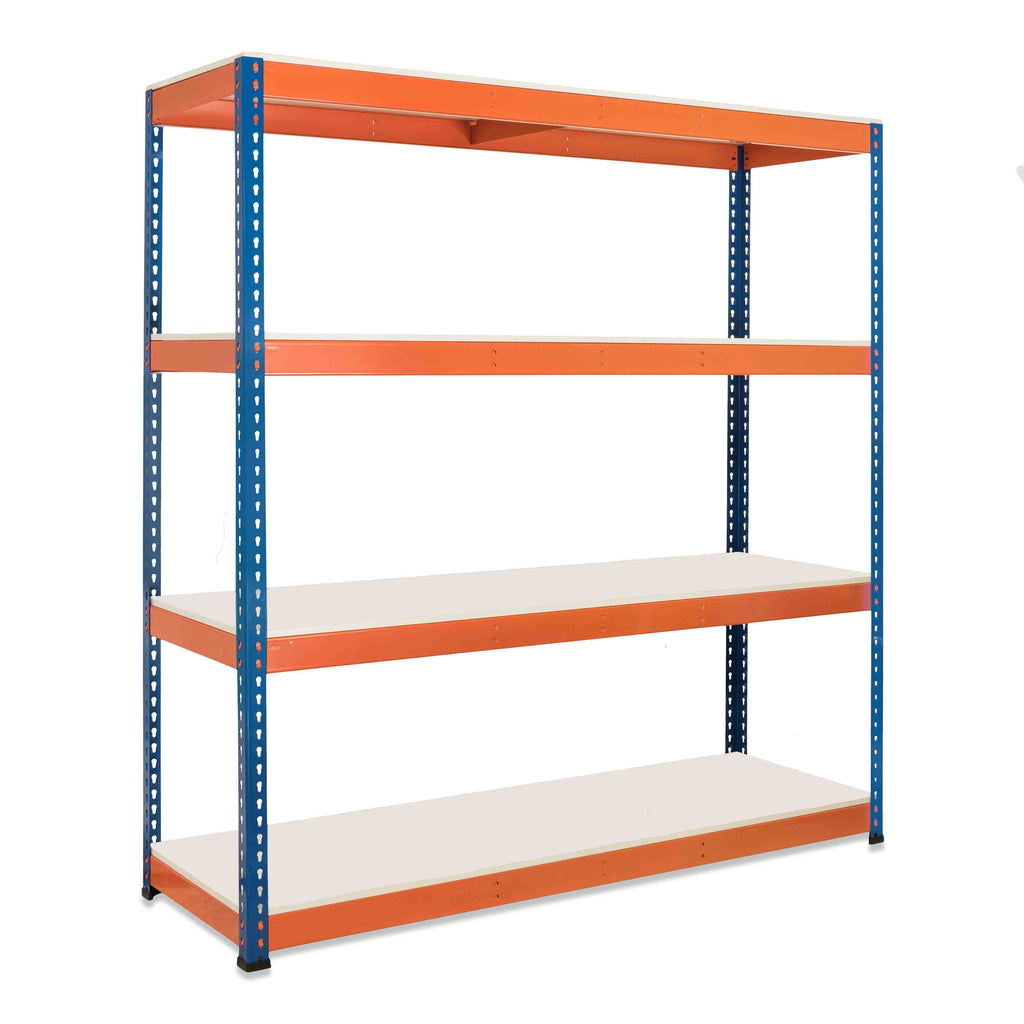

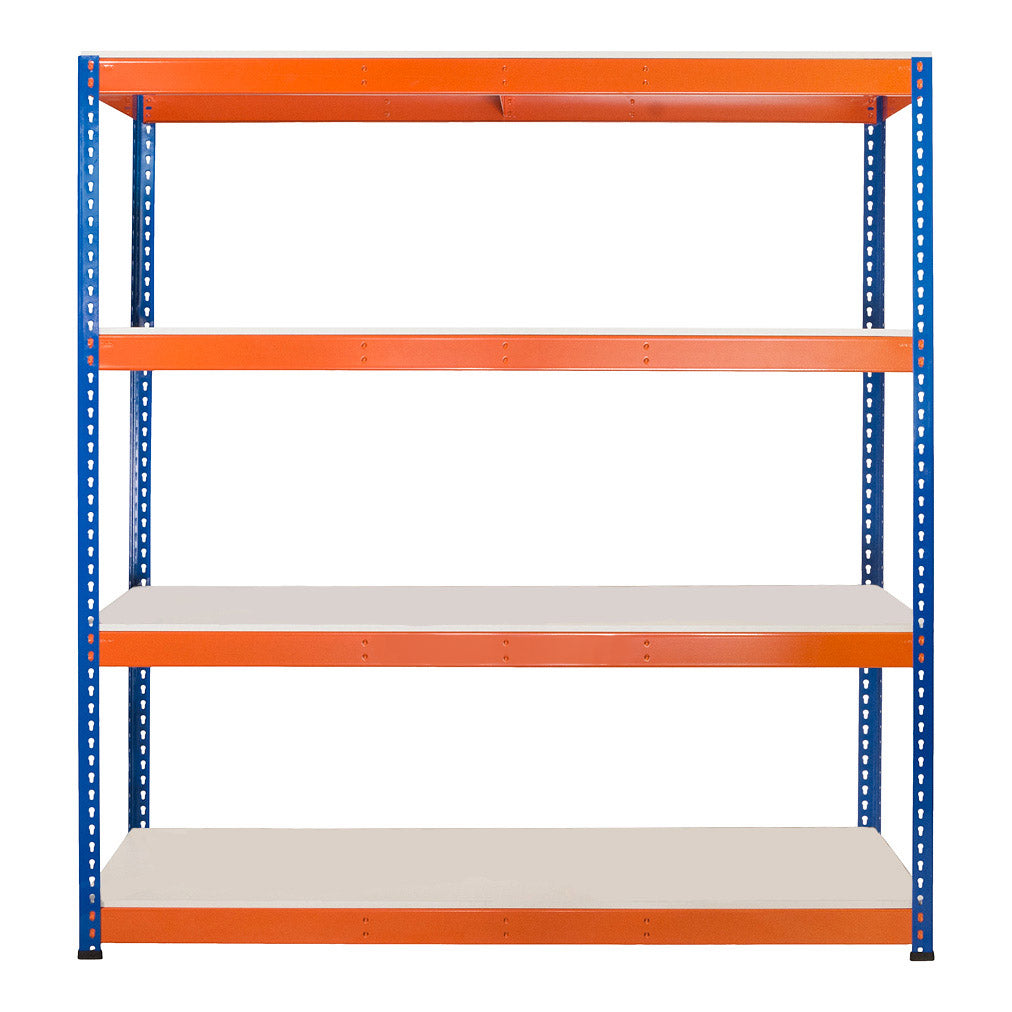

Key Features of SX400 Melamine Industrial Shelving
- 15mm thick melamine chipboard shelves, tested up to 500kg UDL per shelf
- Total load capacity of up to 2,500kg UDL per bay

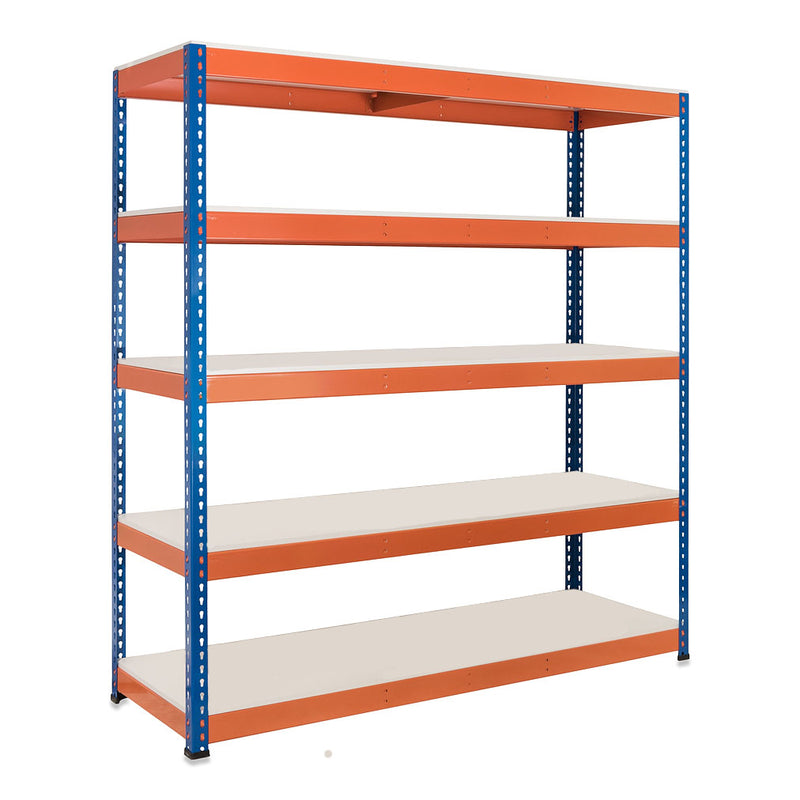

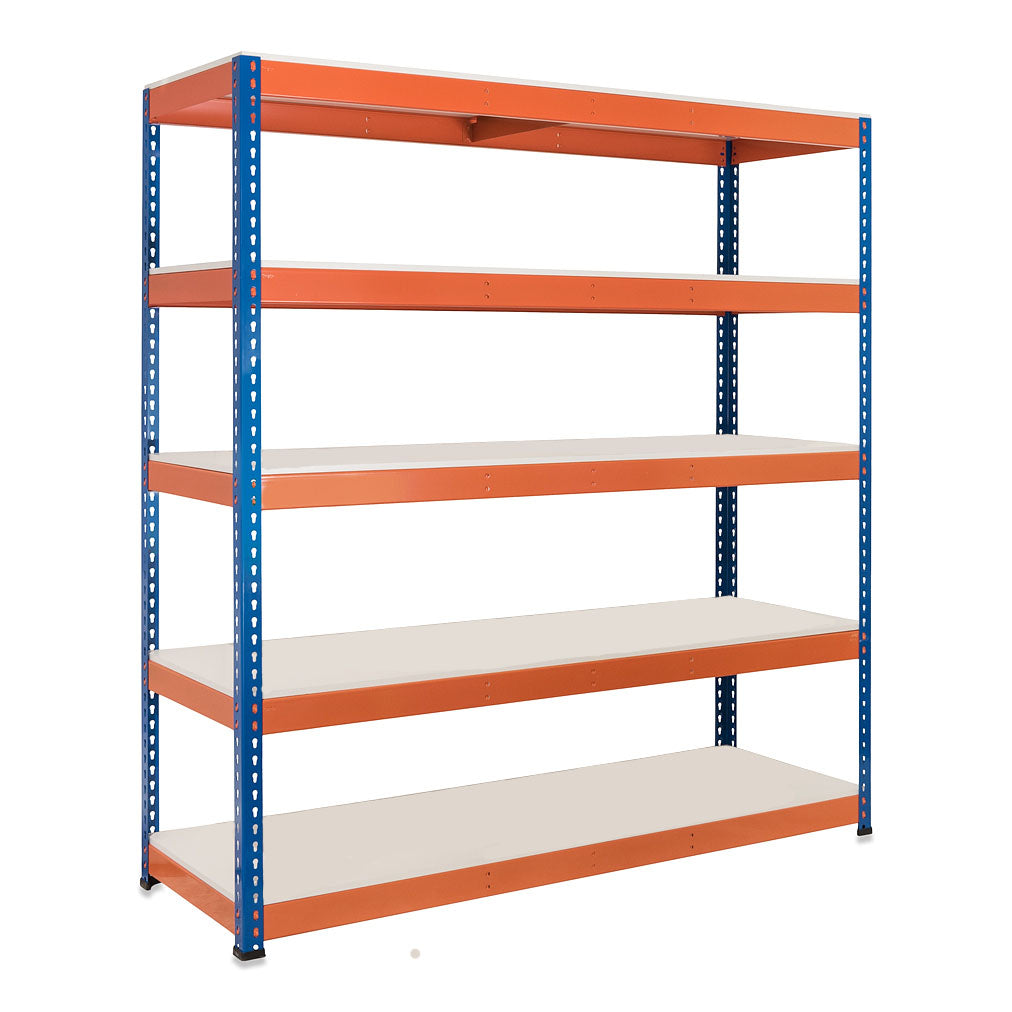

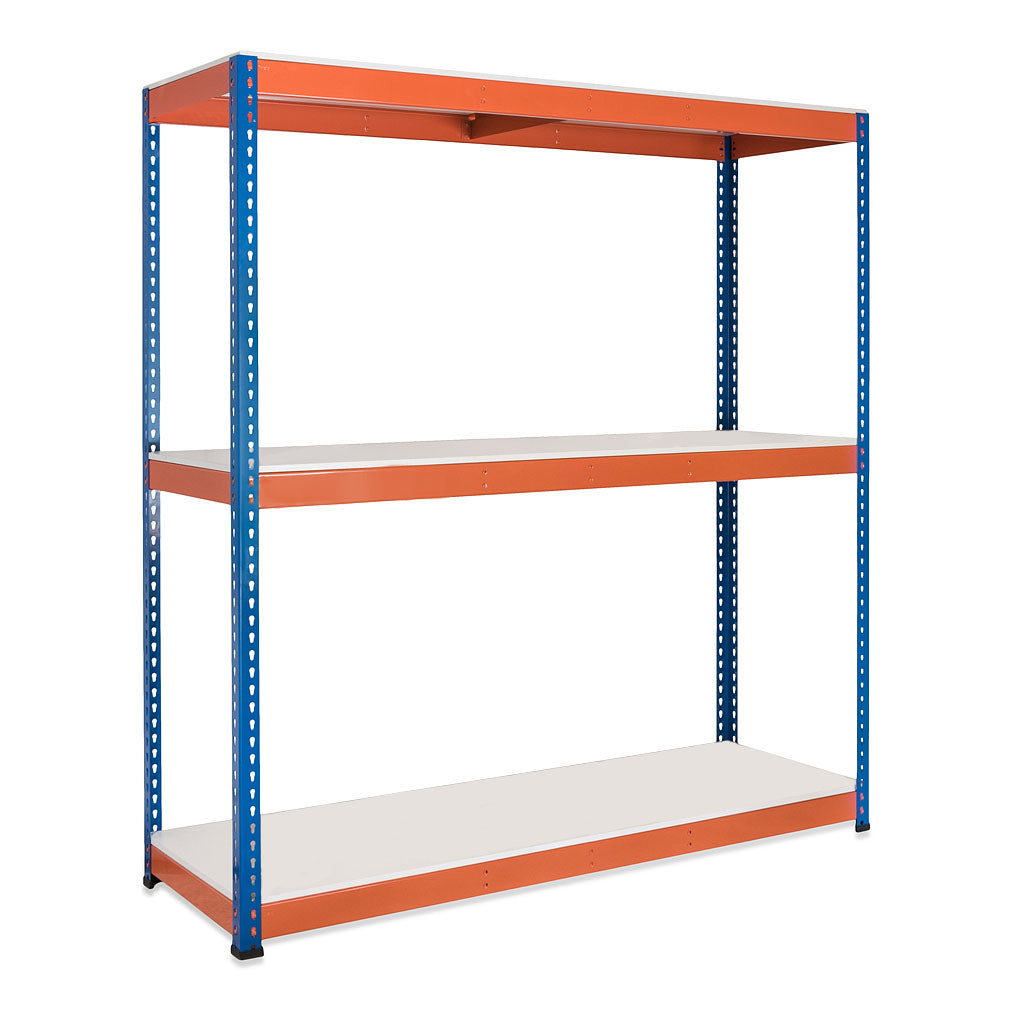

- 3/4/5 x melamine chipboard shelves as standard with each bay
- Purchase additional shelves to suit storage requirements
- Single piece uprights with durable powder coated finish
- Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
- Suitable for daily use within a commercial/industrial environment

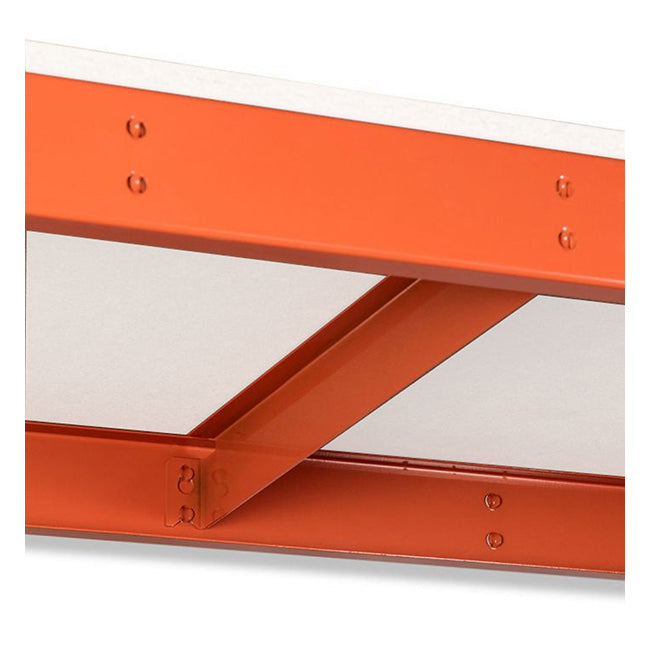

- Low profile shelf beam design maximises storage space
- Quick & easy construction, assembly mallet provided with each order
- Full range of accessories such as joining tie plates available
- Adjustable shelf height every 3.8cm (1.5 Inches)
- Accessible from both sides, no back cross bracing needed
- Free Rubber Assembly Mallet!

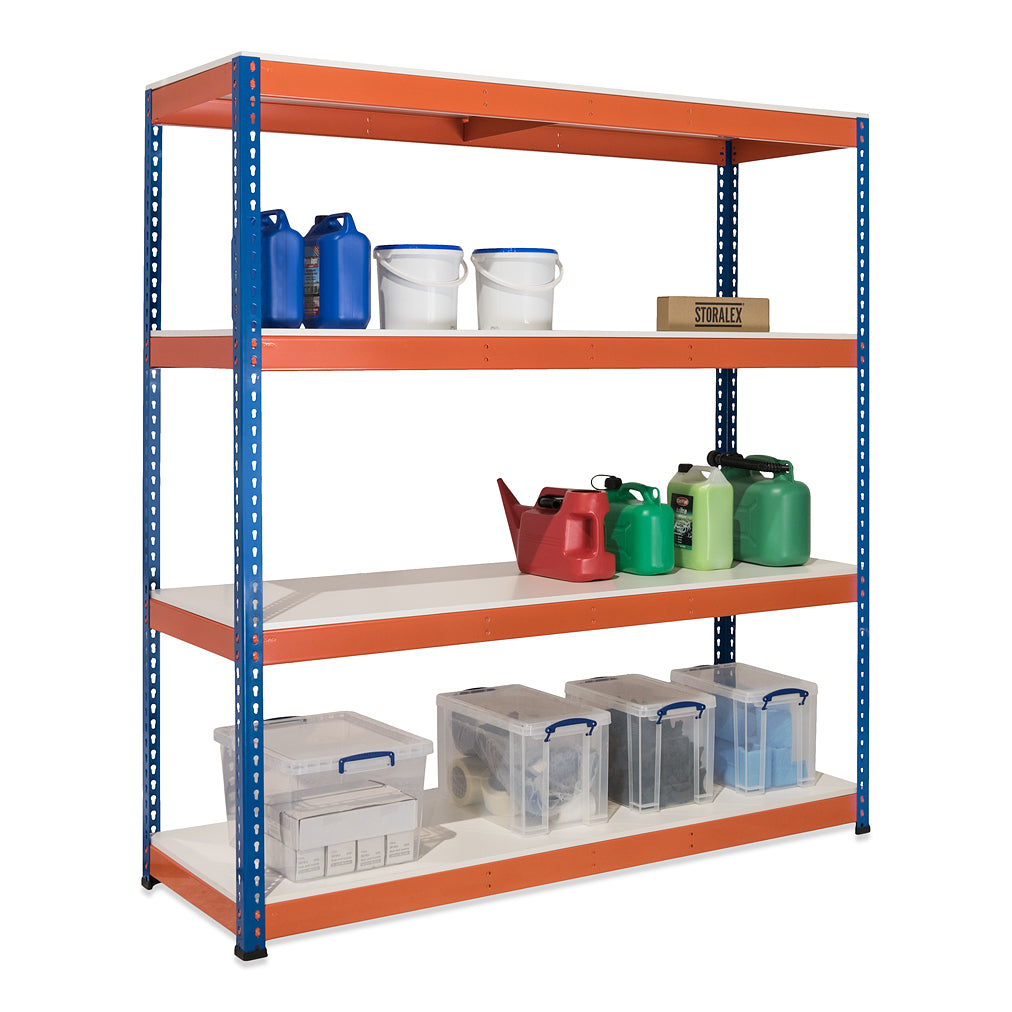

Ideal Uses:
- Regular Picking
- Archive & document storage
- Small parts storage
- Light boxes
- Domestic items

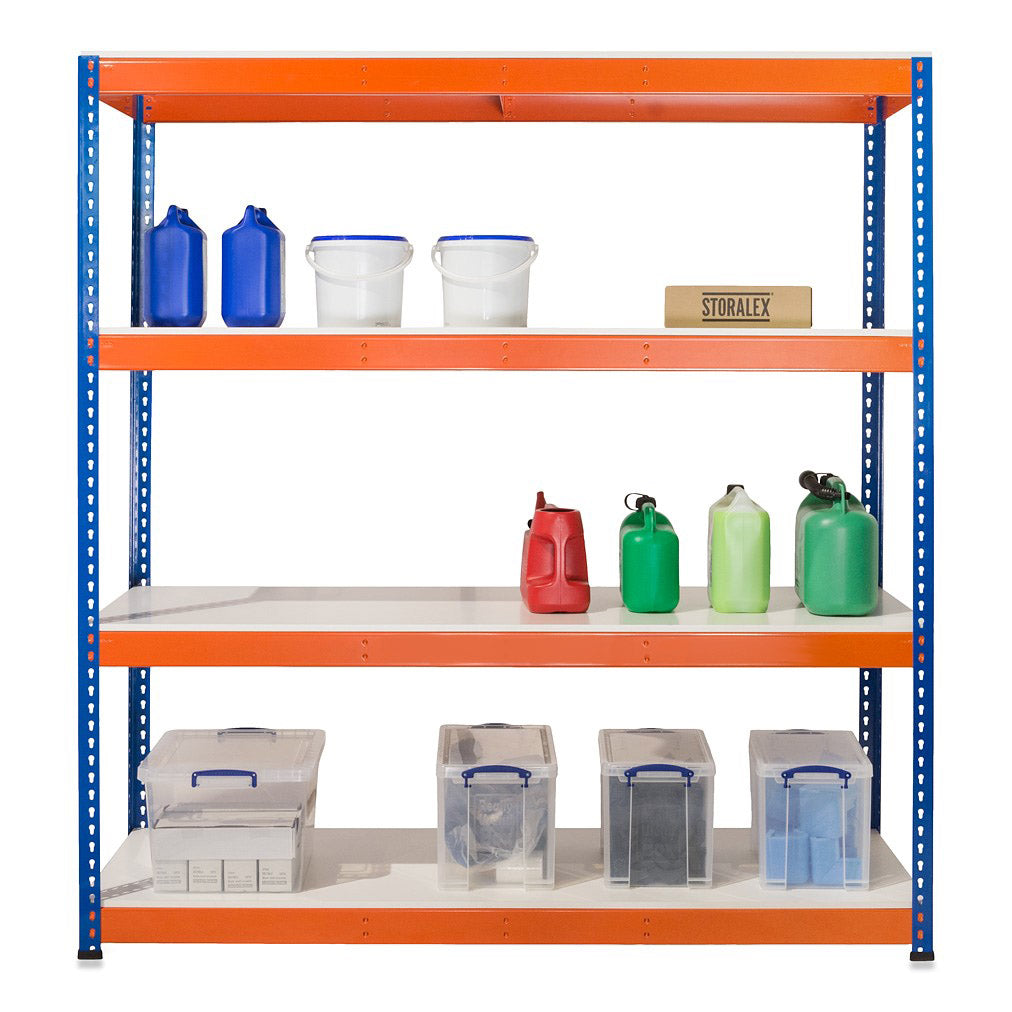

Product Overview
The Storalex SX400 range of heavy-duty industrial shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.
This heavy duty industrial shelving range is perfect for industry & businesses storing items in stockrooms, storerooms, factories and warehouses. Each shelf can support 500kg UDL*, however If you need to increase the shelf weight capacity the SX800 range is a heavier duty version of this product.
Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested to FEM (European Federation of Material Handling) standards these commercial grade units also comply with all relevant ISO manufacturing quality requirements.
SX400 Industrial Shelving Guide
Fitting Guide For SX400 Industrial Shelving Units
External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm
|
Data |
1220w |
1525w |
1830w |
2135w |
2440w |
|---|---|---|---|---|---|
| Upright | one piece | one piece | one piece | one piece | one piece |
| Shelf Adjustment (mm) |
38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
| Clear Entry (mm) |
1135 | 1440 | 1745 | 2050 | 2355 |
| First Bay External (mm) | 1232 | 1537 | 1842 | 2147 | 2452 |
| Additional Bay External (mm) | 1239 | 1544 | 1849 | 2154 | 2459 |
| Total Bay Capacity 1677h | 1600kg | 1600kg | 1600kg | 1600kg | 1600kg |
| Total Bay Capacity 1980h | 1600kg | 1600kg | 1600kg | 1600kg | 1600kg |
| Total Bay Capacity 3050h | 1320kg | 1320kg | 1320kg | 1320kg | 1320kg |
| Upright Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Beam Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Chipboard Thickness (mm) | 15 | 15 | 15 | 15 | 15 |
| Melamine Thickness (mm) | 15 | 15 | 15 | 15 | 15 |
| Steel Thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of Shelf (mm) | 94 |
94 |
94 |
94 |
94 |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK |
|---|
| Industrial Shelving & Racking | Assembly Instructions - Storalex SX400 & SX800 - Industrial Shelving | DOWNLOAD |
