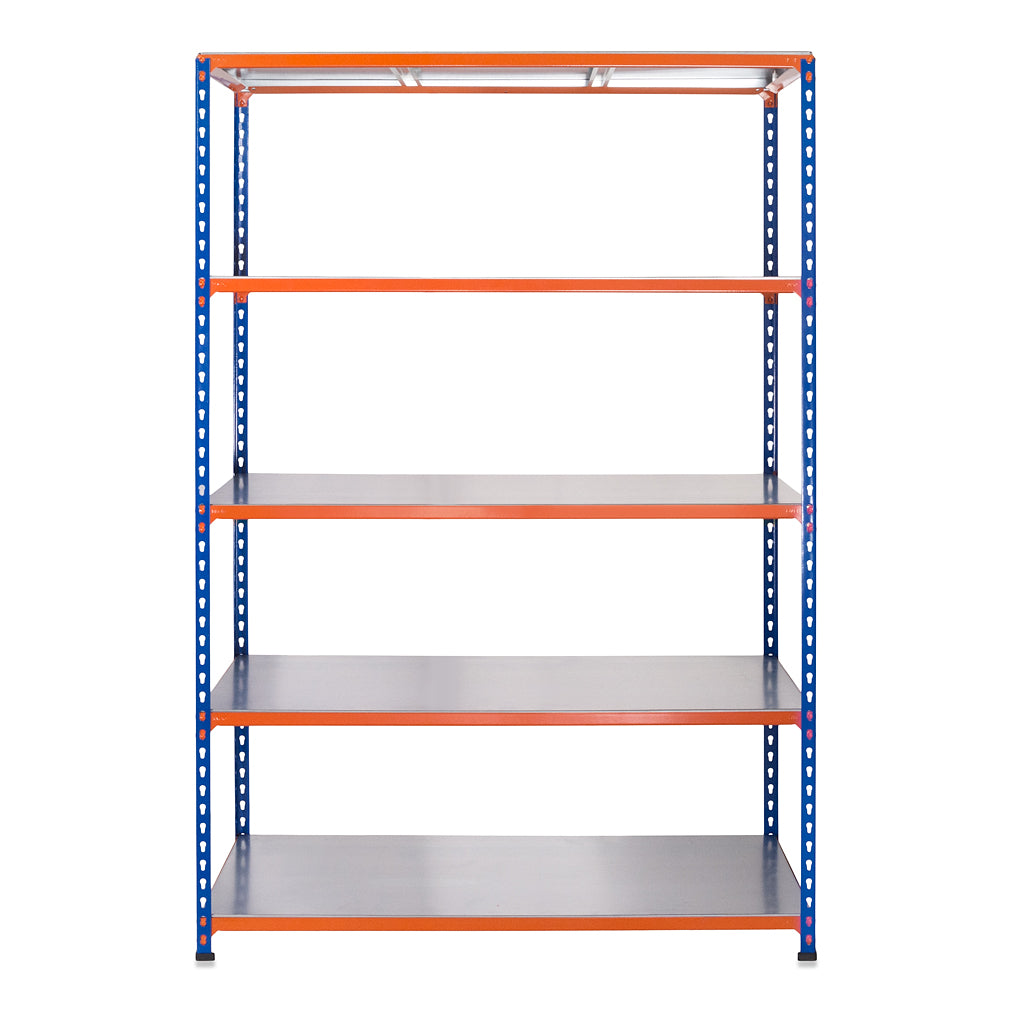

Key Features of SX340 Steel Shelving

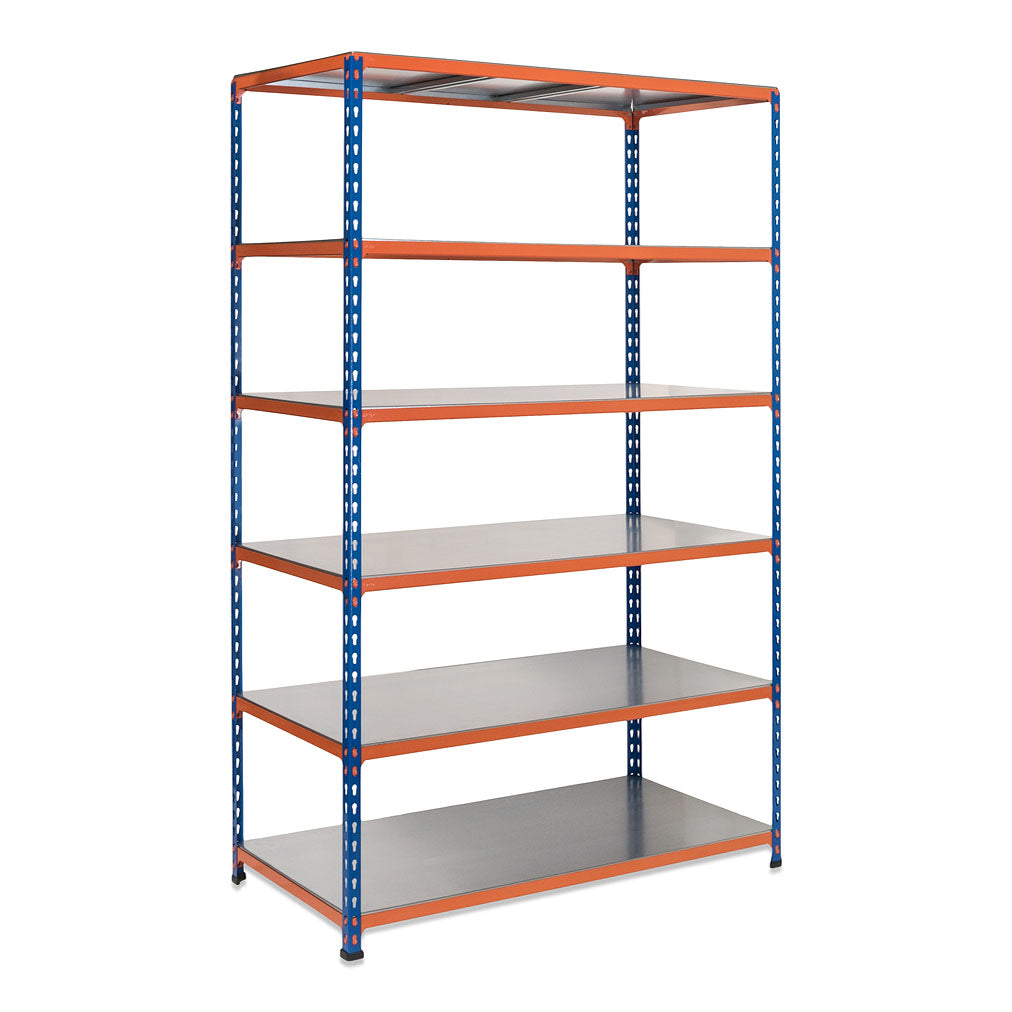

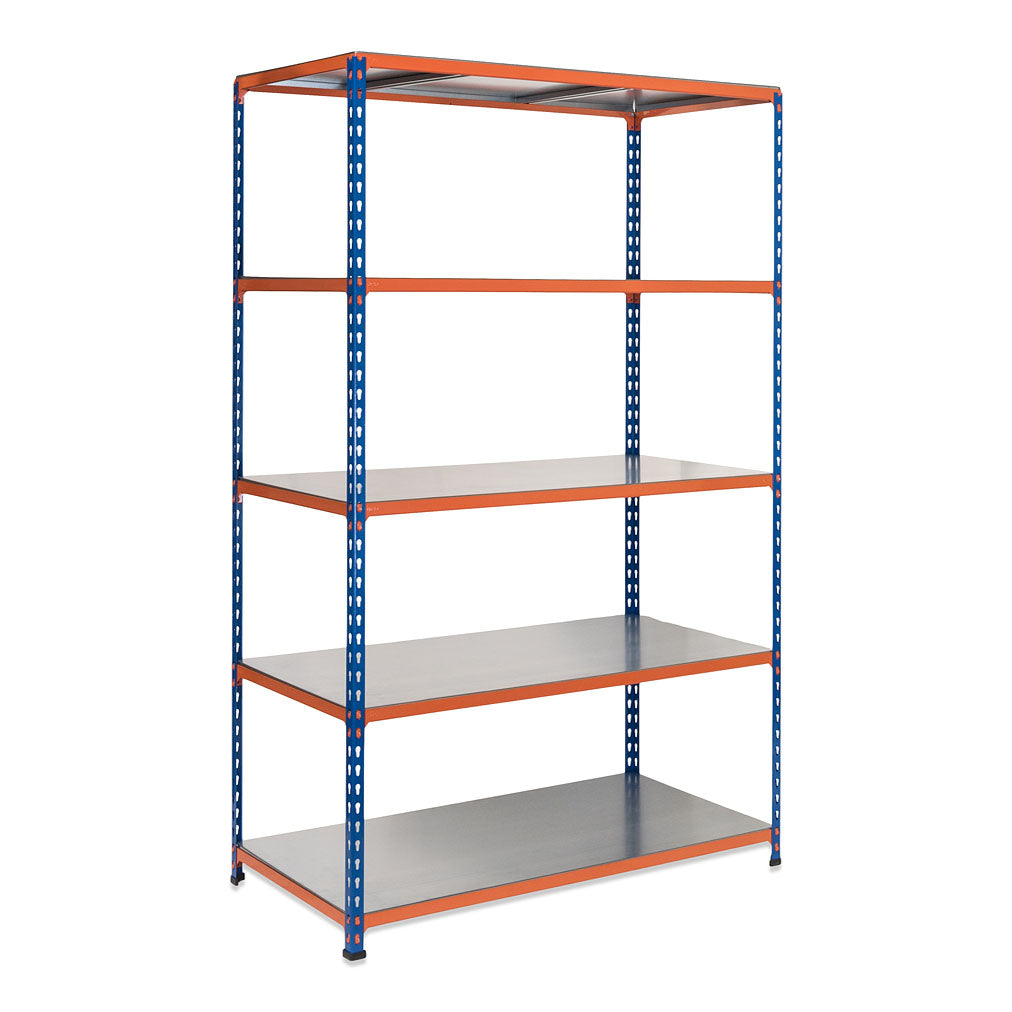

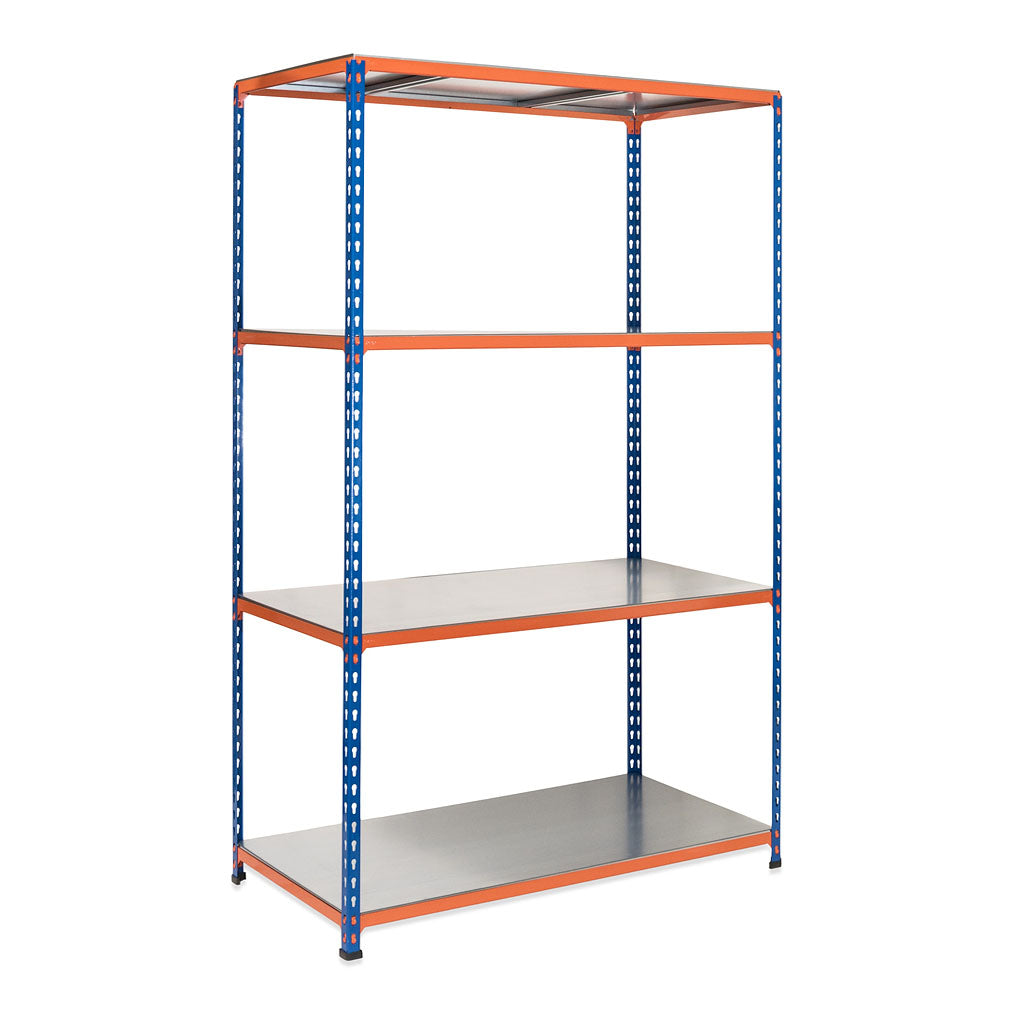

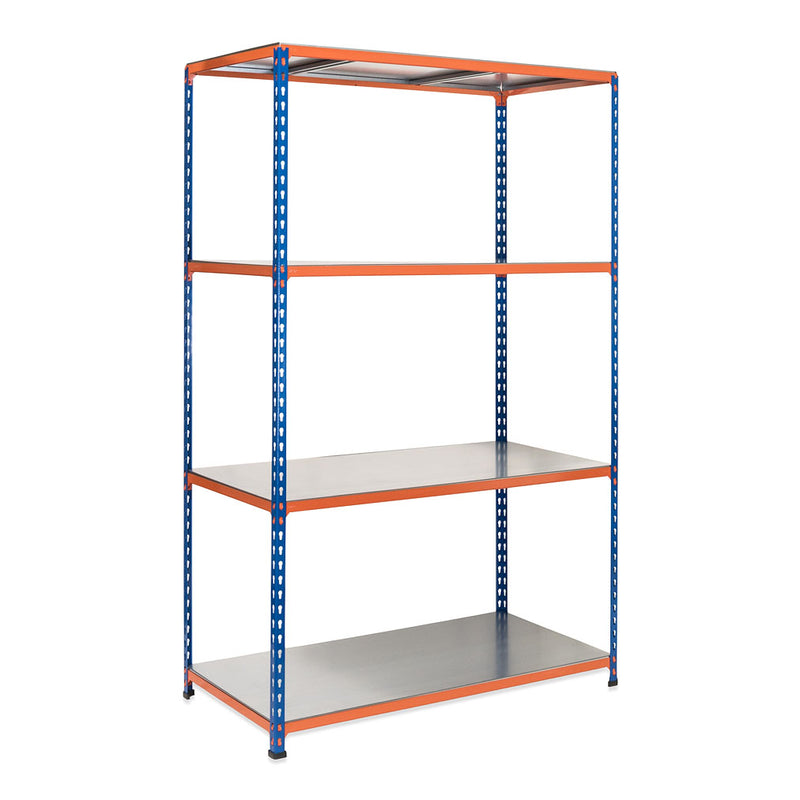

- 4, 5 and 6 level bays available
- 2mm thick powder coated European steel construction

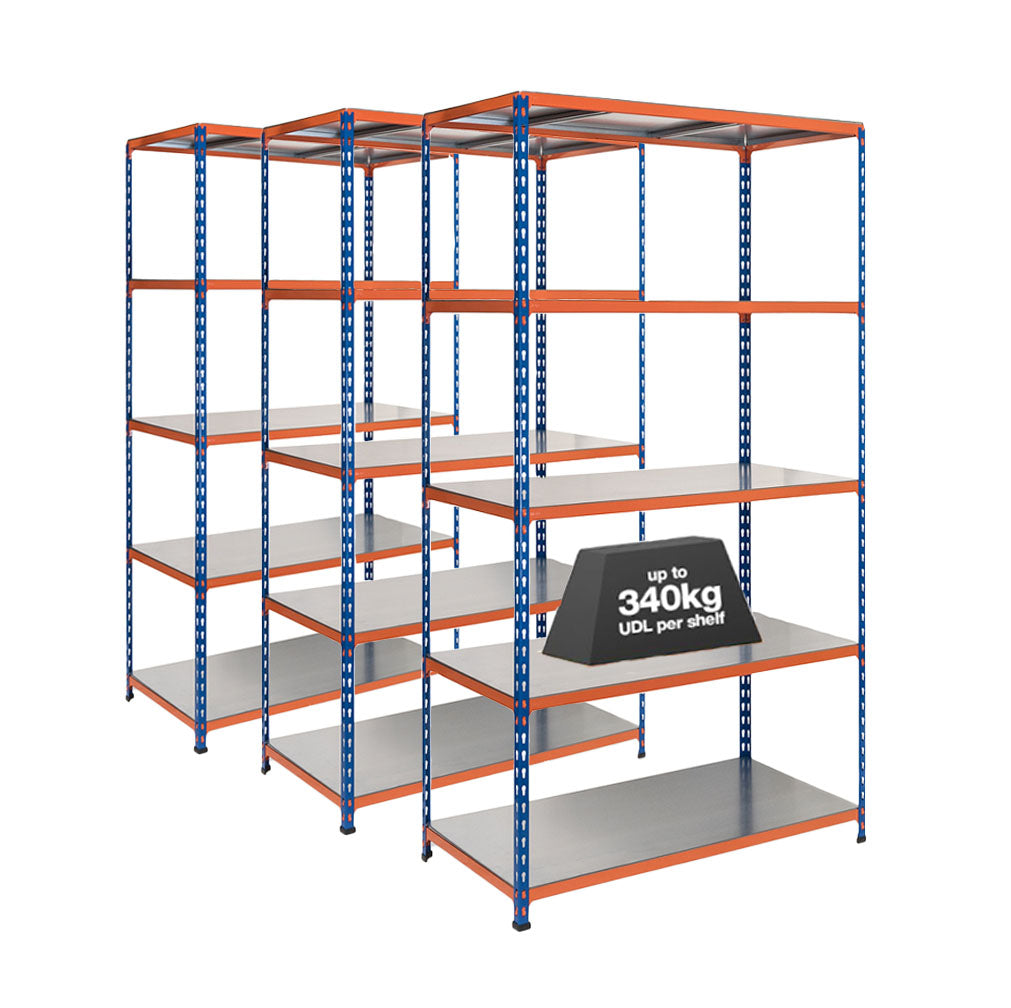

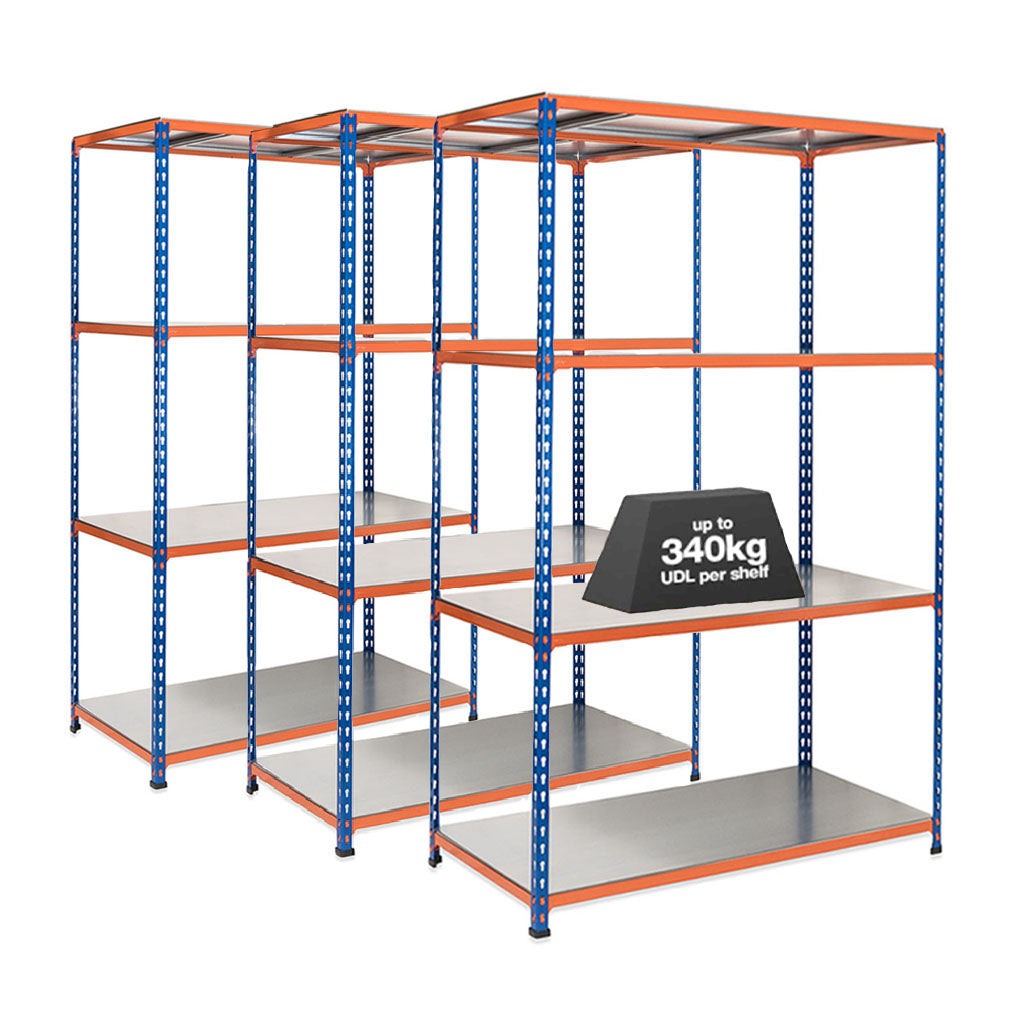

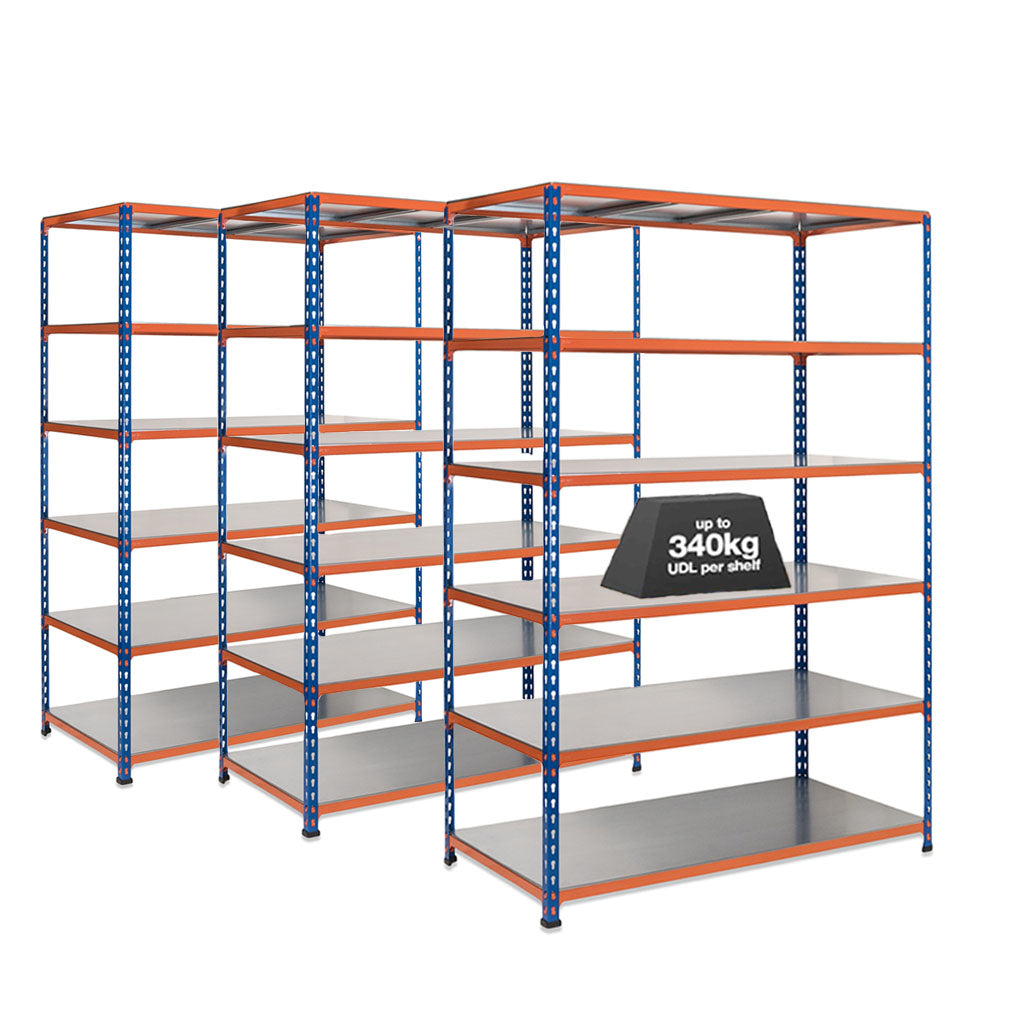

- Strong galvanised steel shelves, tested to 340kg UDL per shelf
- Total load capacity of up to 2,040kg UDL per bay
- Single piece uprights increase bay stability
- Purchase additional shelves to suit storage requirements

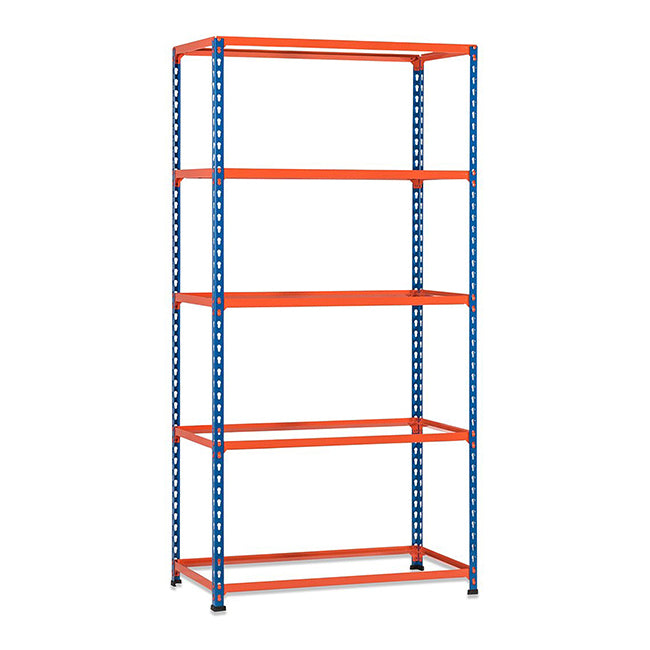

- Steel support beams on each level for extra reinforcement

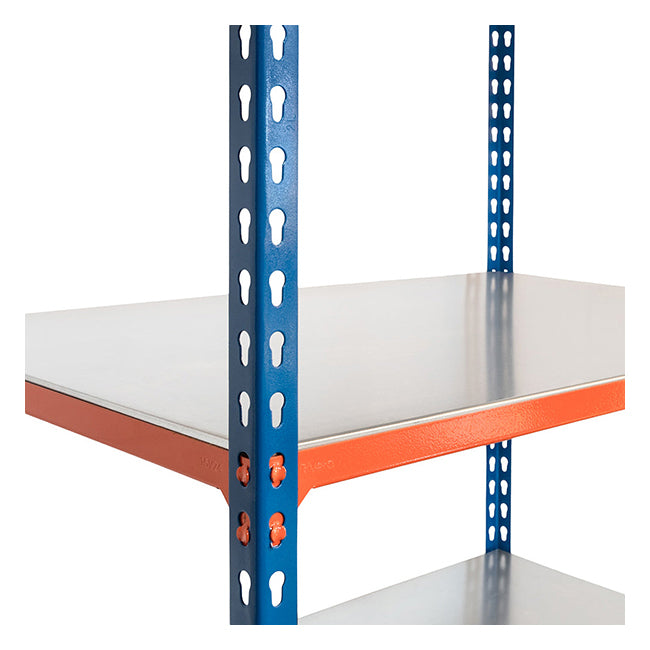

- Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
- 4/5/6 x steel decks as standard with each bay
- Built to ISO manufacturing standards
- Suitable for daily use within a commercial/industrial environment
- Low profile shelf beam design maximises storage space
- Quick & easy construction, assembly mallet provided with each order
- Full range of accessories such as joining tie plates available
- Adjustable shelf height every 3.8cm (1.5 Inches)
- Accessible from both sides, no cross bracing needed
- Free Rubber Assembly Mallet
Ideal Uses:
- Regular Picking
- Archive & document storage
- Small parts storage
- Heavy boxes
- Domestic items
Product Overview

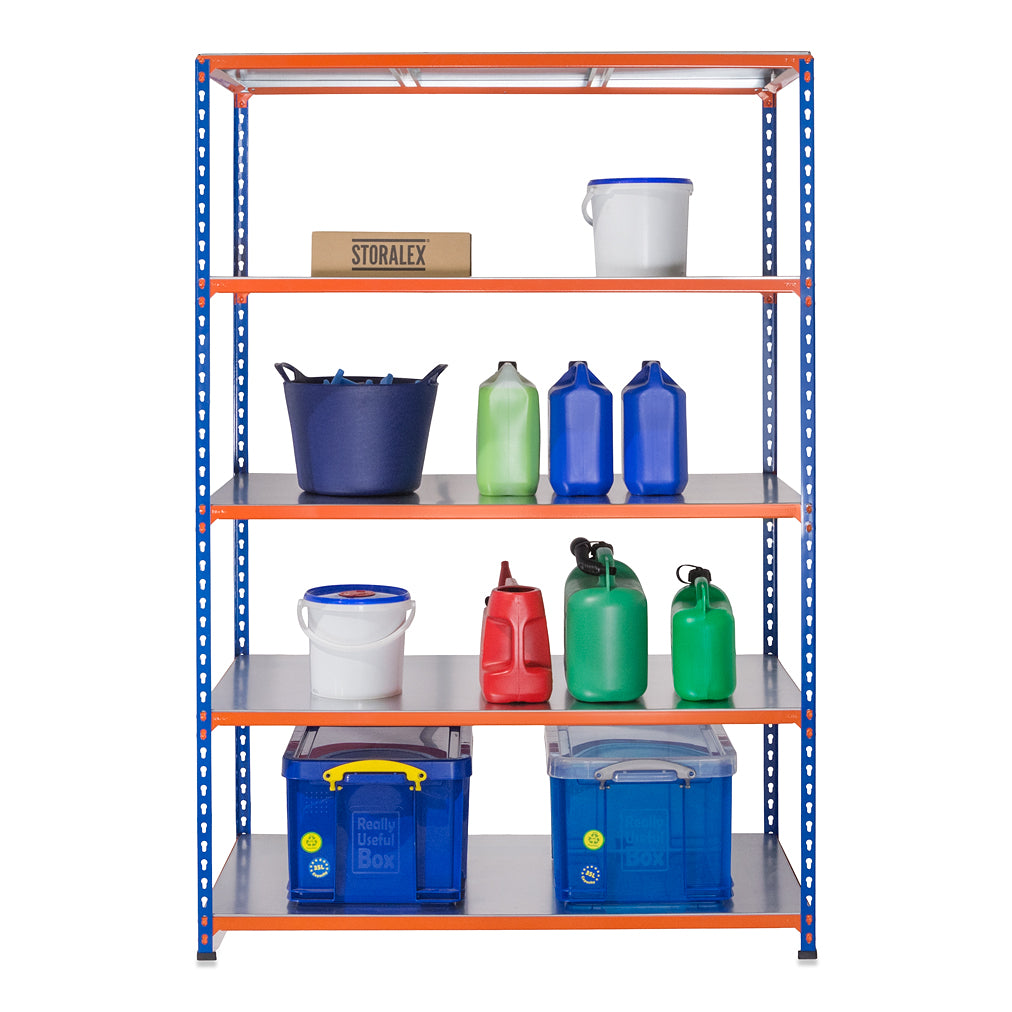

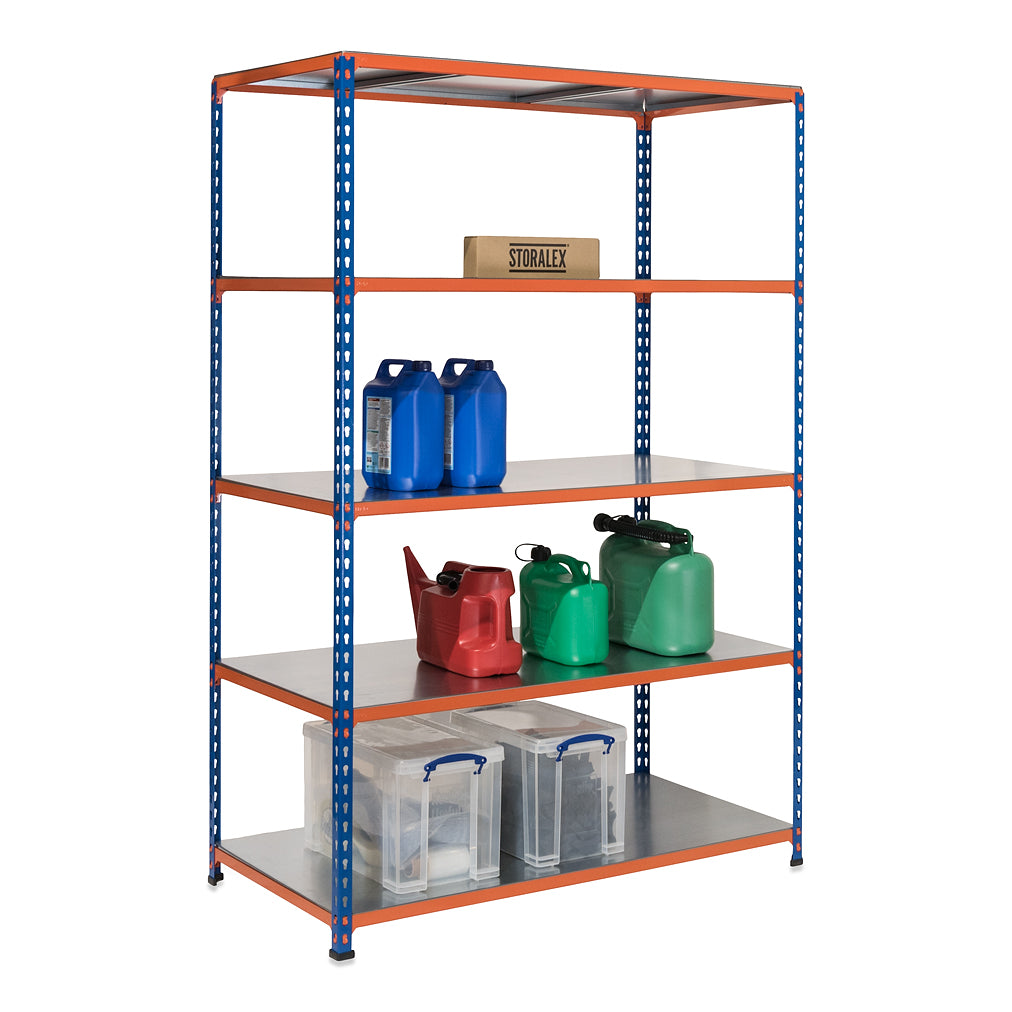

The Storalex SX340 range of steel shelving is a general purpose ‘work horse’ great for frequent use within industrial, commercial and retail environments. This range of shelving has been used in warehouses and stockrooms for over 25 years and uses a tried and tested boltless design.
Our most versatile shelving range, the SX340 modular system has been rigorously tested to FEM (European Federation of Material Handling) standards – suitable for daily use in an industrial environment.
SX340 Steel Shelving Guide
Fitting Guide For SX340 Industrial Shelving Units
External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm
|
Data |
610w |
915w |
1220w |
1525w |
|---|---|---|---|---|
| Upright | One Piece | One Piece | One Piece | One Piece |
| Shelf Adjustment (mm) |
38.1 | 38.1 | 38.1 | 38.1 |
| Clear Entry (mm) |
546 | 851 | 1156 | 1461 |
| First Bay External (mm) | 620 | 925 | 1230 | 1535 |
| Additional Bay External (mm) | 627 | 932 | 1237 | 1542 |
| Total Bay Capacity 1830h mm | 2869kg | 2869kg | 2869g | 2869kg |
| Total Bay Capacity 2440h mm | 2475kg | 2475kg | 2475kg | 2475kg |
| Total Bay Capacity 3050h mm | 1745kg | 1745kg | 1745kg | 1745kg |
| Upright Steel Thickness (mm) | 1.8 | 1.8 | 1.8 | 1.8 |
| Beam Steel Thickness (mm) | 2 |
2 |
2 |
2 |
| Chipboard Thickness (mm) | 15 | 15 | 15 | 15 |
| Melamine Thickness (mm) | 15 | 15 | 15 | 15 |
| Steel Thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of Shelf (mm) | 30 | 30 | 30 | 30 |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK |
|---|
| Industrial Shelving & Racking | Assembly Instructions - Storalex SX200 & SX340 - Industrial Shelving | DOWNLOAD |
