Key Features of SX200 Steel Shelving

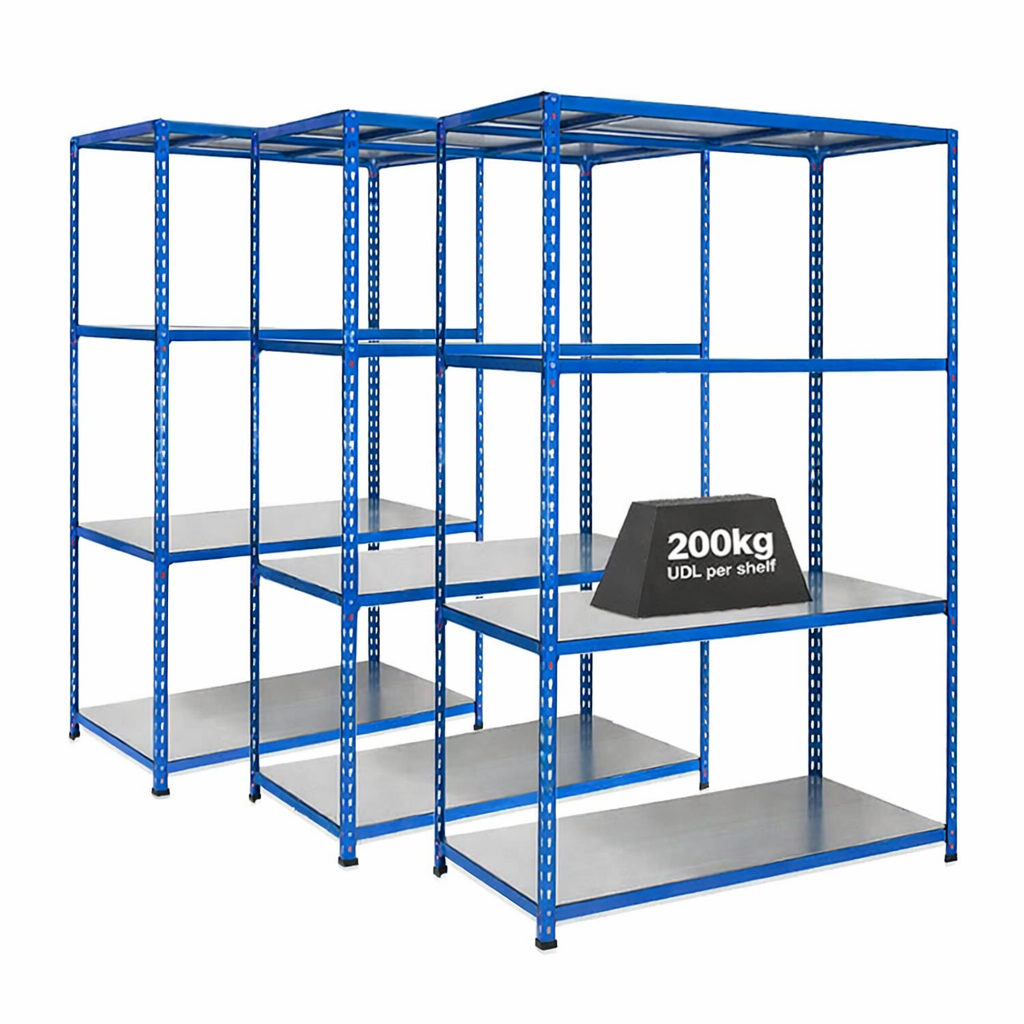

- Holds up to 200kg UDL per shelf (up to 915mm wide)
- Total load capacity of up to 1,000kg UDL per bay
- Steel galvanised decks

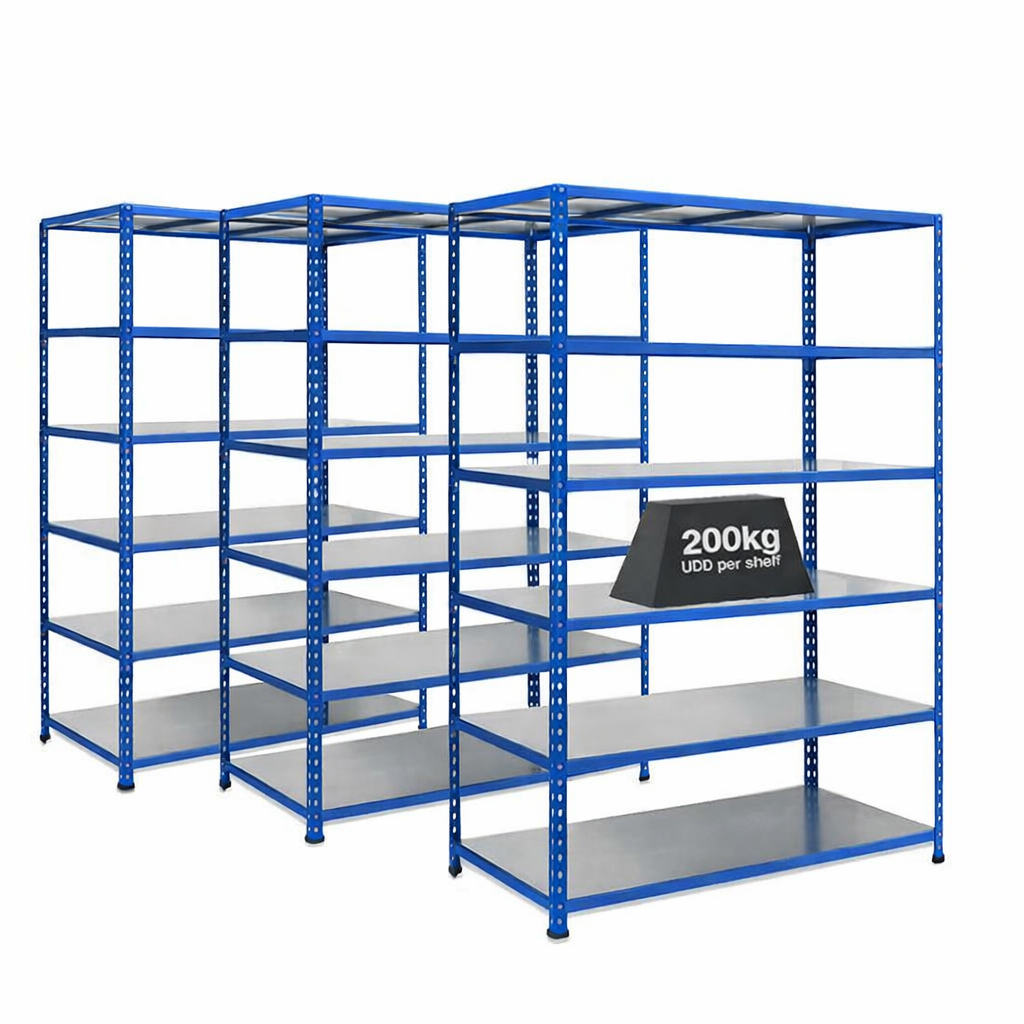

- 4, 5 or 6 level options for each bay
- Additional levels are available separately to suit storage requirements
- Steel support beams for each level for extra reinforcement
- 915mm wide units are supplied with 1x support beam per level
- 1220mm wide units are supplied with 2x support beams per level
- High quality, thick steel uprights and beams with a durable powder coated blue finish
- Boltless ‘stud & keyhole’ design
- Suitable for daily use within a commercial/industrial environment
- Low profile shelf beam design maximises storage space
- Construction is quick and easy with no bolts required
- Full range of accessories such as joining tie plates available
- Adjustable shelf height every 3.8cm (1.5 Inches)
- Accessible from both sides, no back cross bracing needed
- Free Rubber Assembly Mallet!
Ideal Uses:
- Regular Picking
- Archive & document storage
- Small parts storage
- Light boxes
- Domestic items

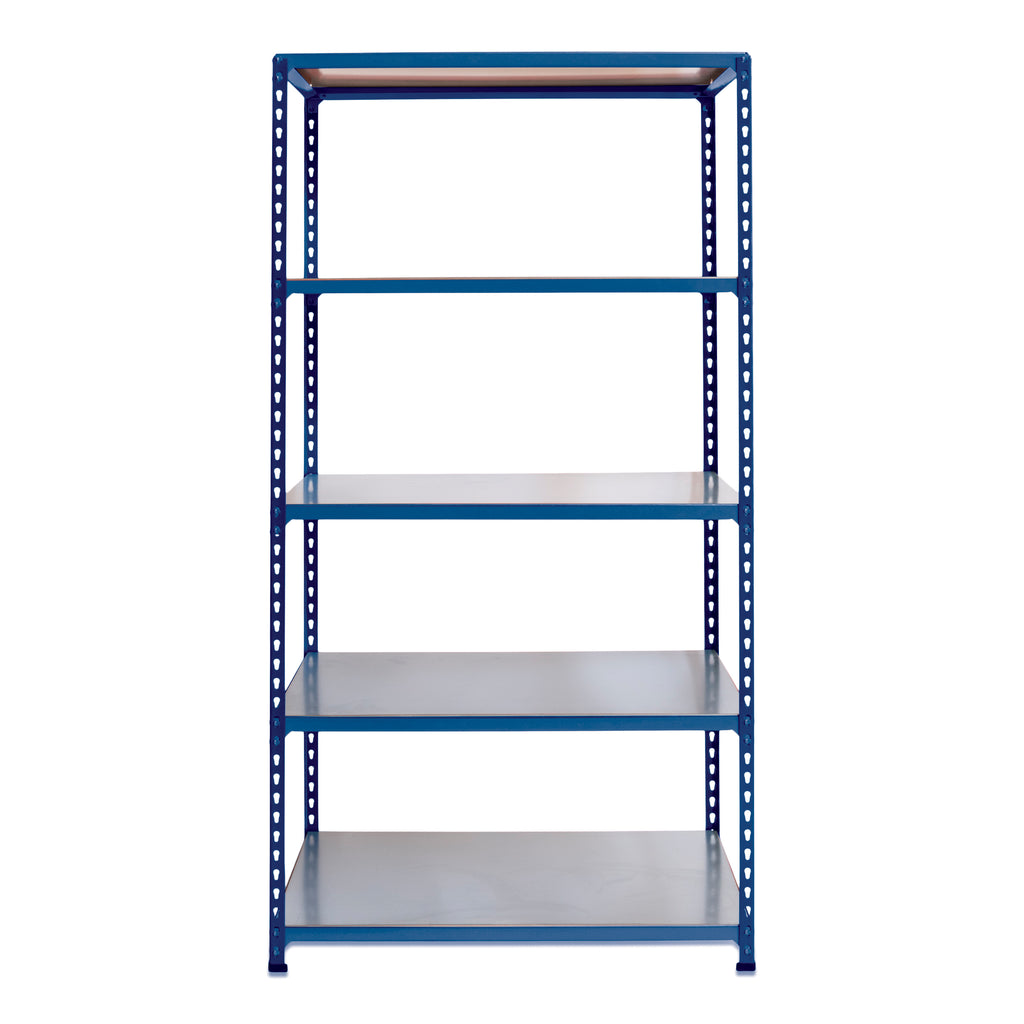

Product Overview
The Storalex SX200 range of medium-duty steel shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.
This light industrial range is perfect for businesses storing items in stockrooms, storerooms or heavy duty domestic applications such as garages or workshops. Each shelf can support 200kg UDL*, however If you need to increase the shelf weight capacity the SX340 range is a heavier duty version of this product.
Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested these commercial grade units also comply with all relevant ISO manufacturing quality requirements.
SX200 Steel Shelving Guide
Fitting Guide For SX200 Industrial Shelving Units
External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm
|
Data |
610w |
915w |
1220w |
1525w |
|---|---|---|---|---|
| Upright | One Piece | One Piece | One Piece | One Piece |
| Shelf Adjustment (mm) |
38.1 | 38.1 | 38.1 | 38.1 |
| Clear Entry (mm) |
546 | 851 | 1156 | 1461 |
| First Bay External (mm) | 620 | 925 | 1230 | 1535 |
| Additional Bay External (mm) | 627 | 932 | 1237 | 1542 |
| Total Bay Capacity 1830h mm | 1200kg | 1200kg | 1200kg | 1200kg |
| Total Bay Capacity 2440h mm | 1000kg | 1000kg | 1000kg | 1000kg |
| Upright Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 |
| Beam Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 |
| Chipboard Thickness (mm) | 15 | 15 | 15 | 15 |
| Melamine Thickness (mm) | 15 | 15 | 15 | 15 |
| Steel Thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of Shelf (mm) | 30 | 30 | 30 | 30 |
