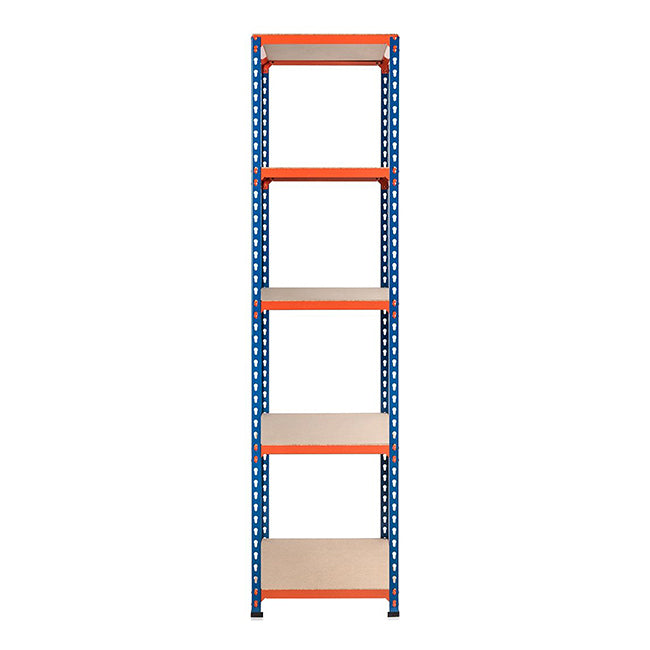

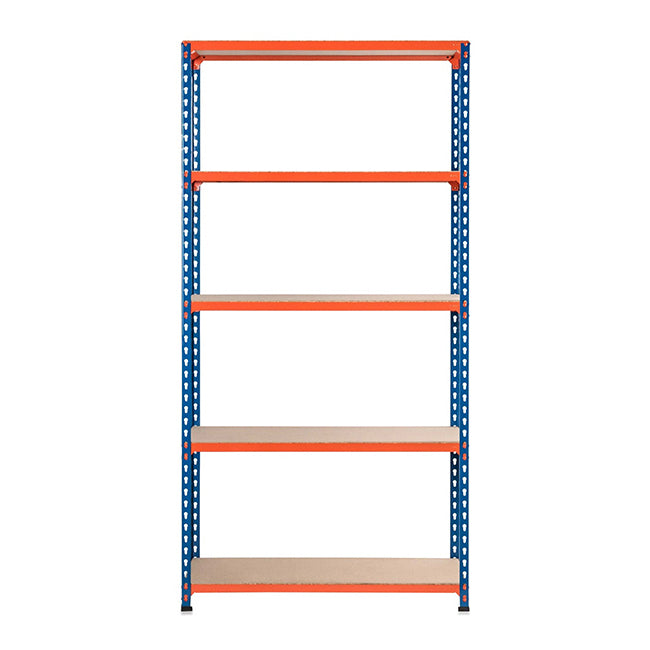

Key Features of SX200 Industrial Shelving

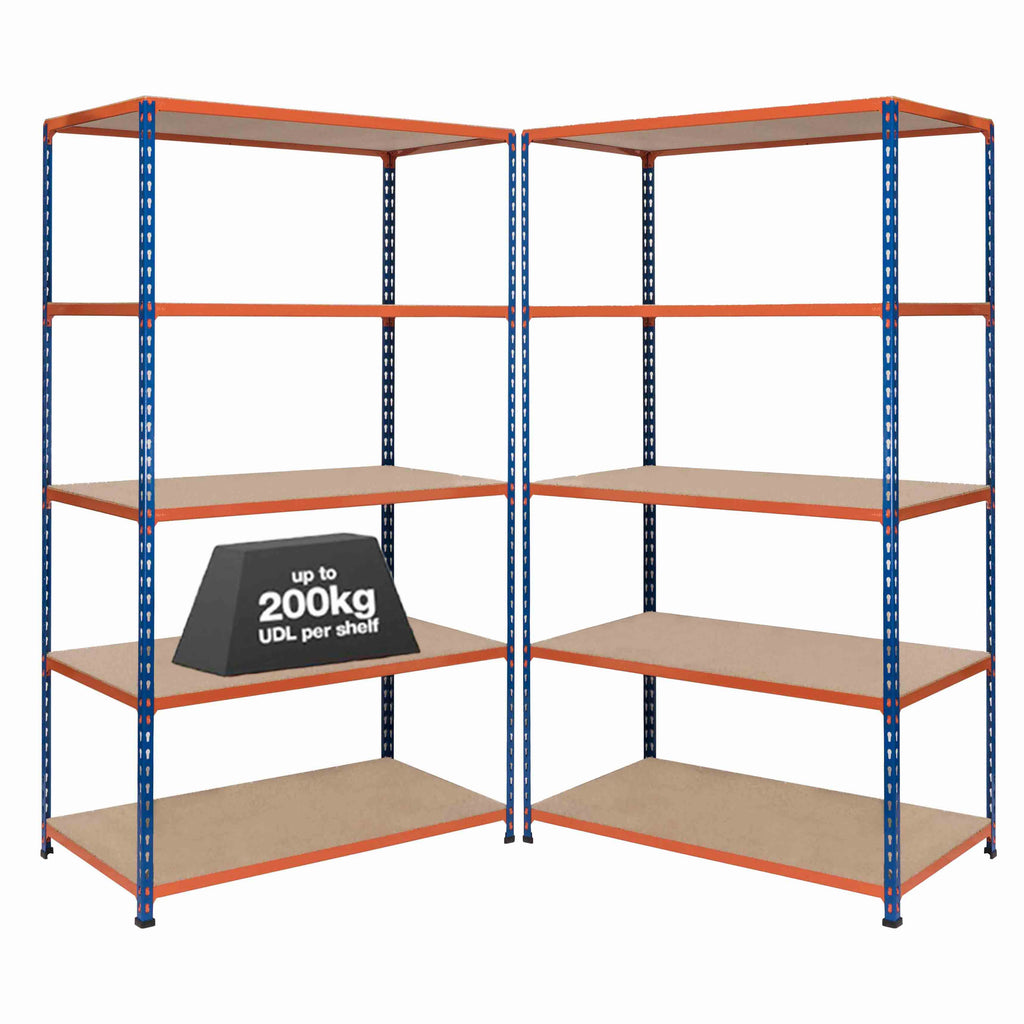

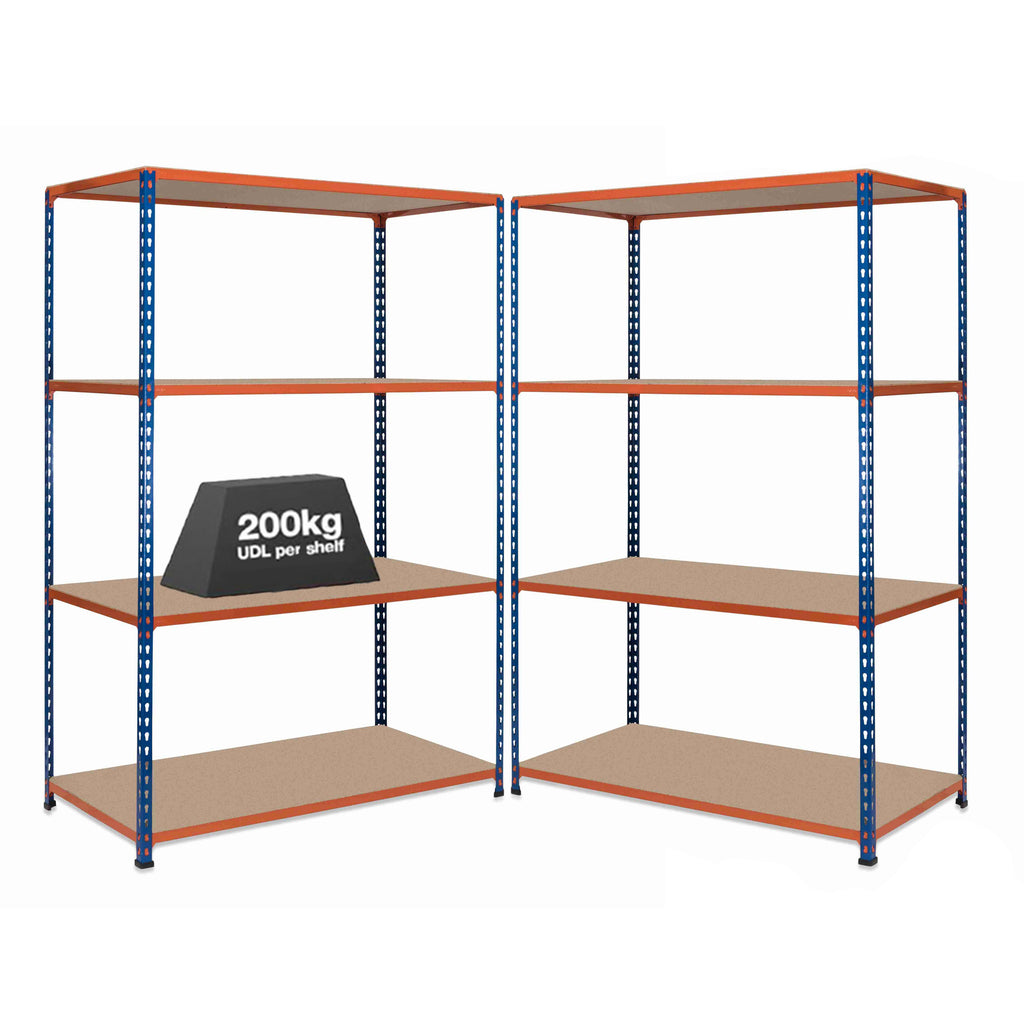

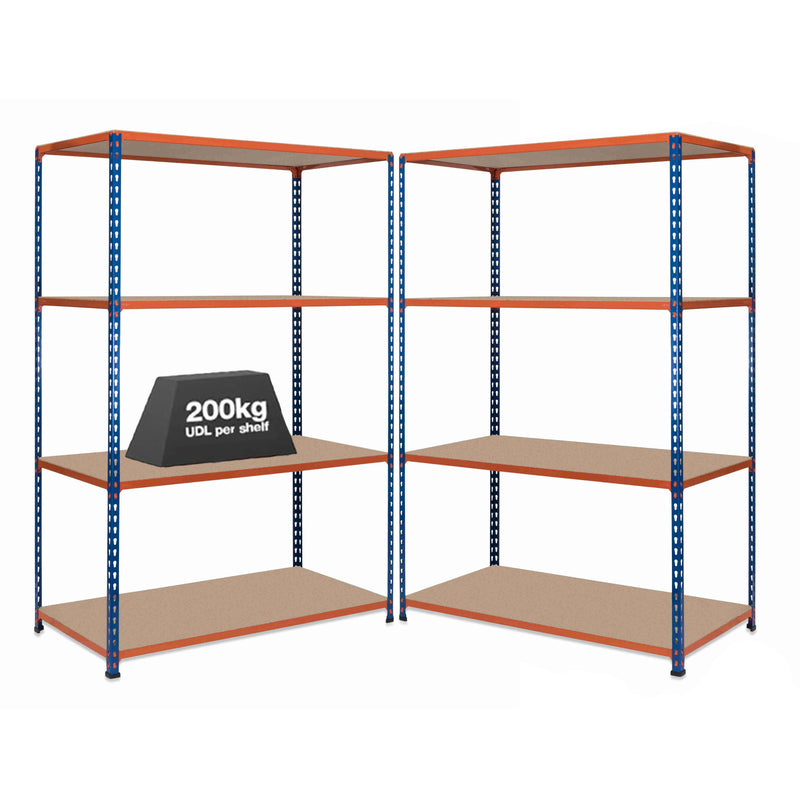

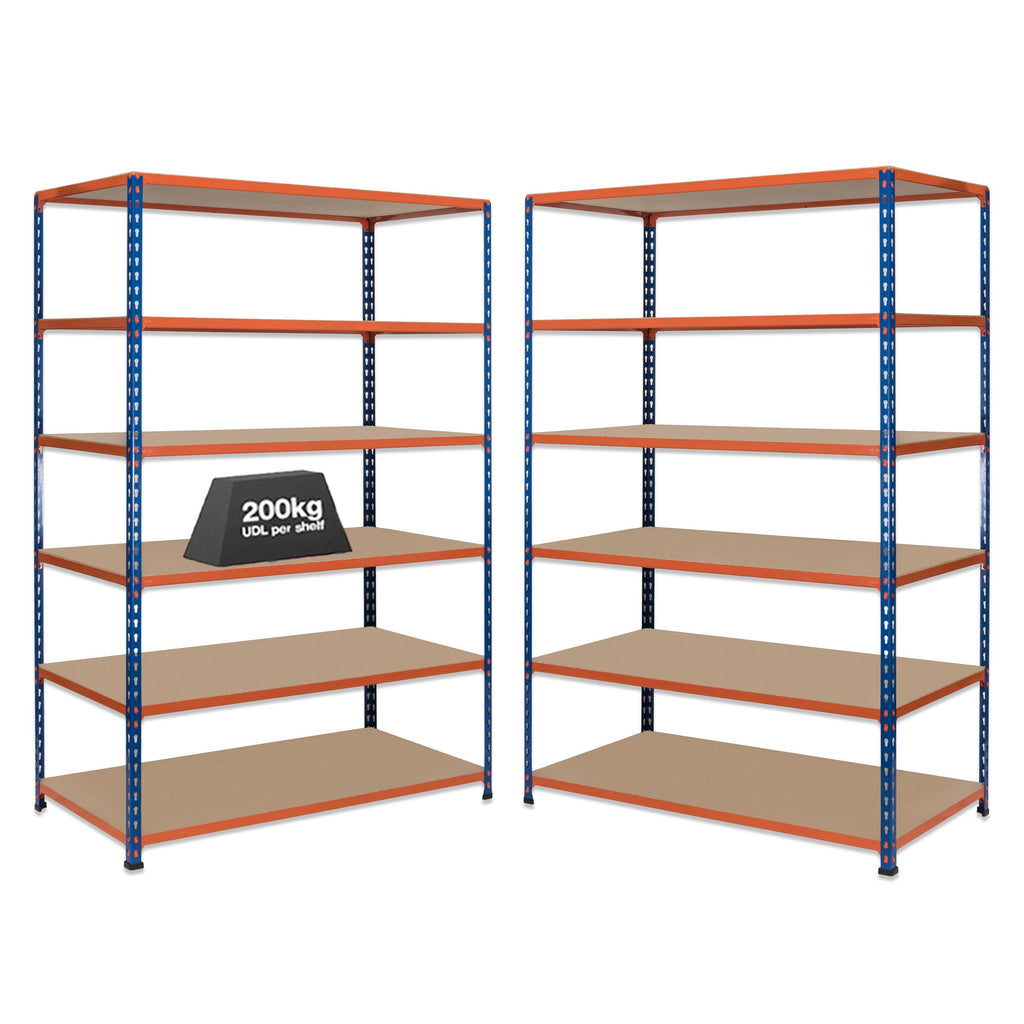

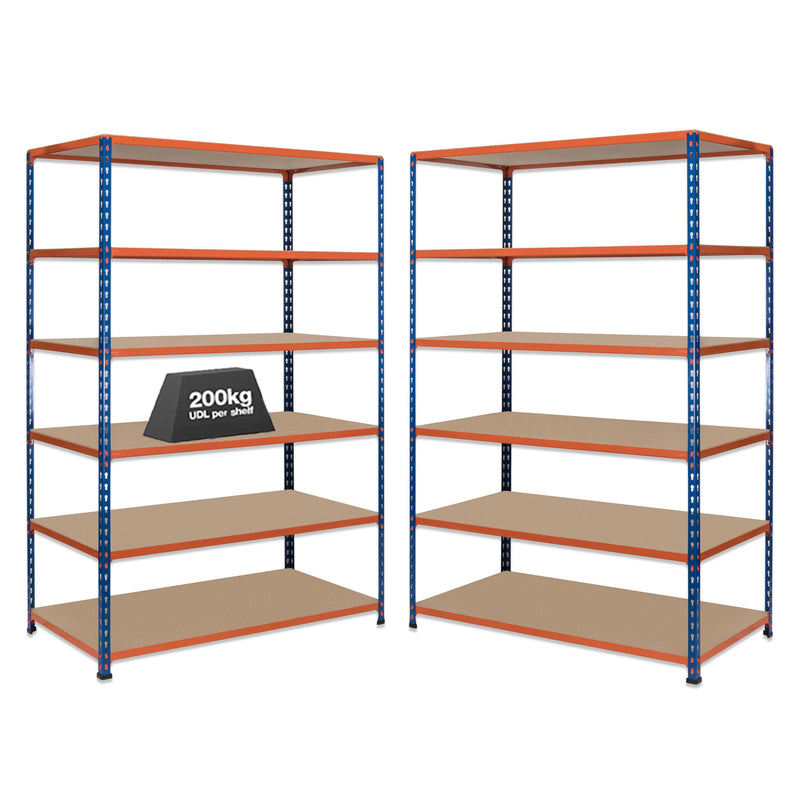

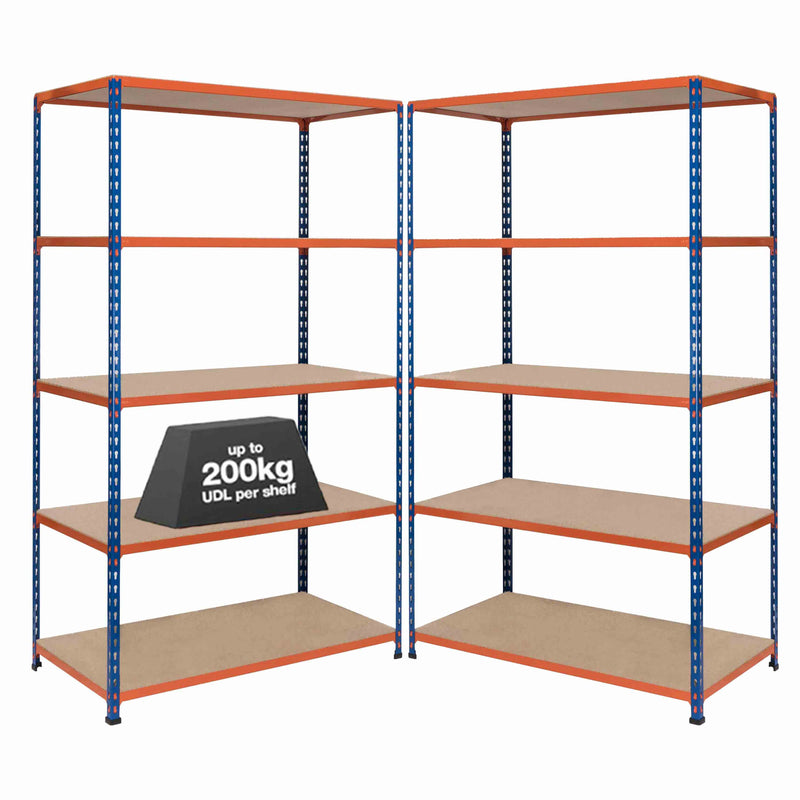

- 15mm thick chipboard shelves, tested to 200kg UDL per shelf (915mm wide)
- Total load capacity of up to 1,200kg UDL per bay

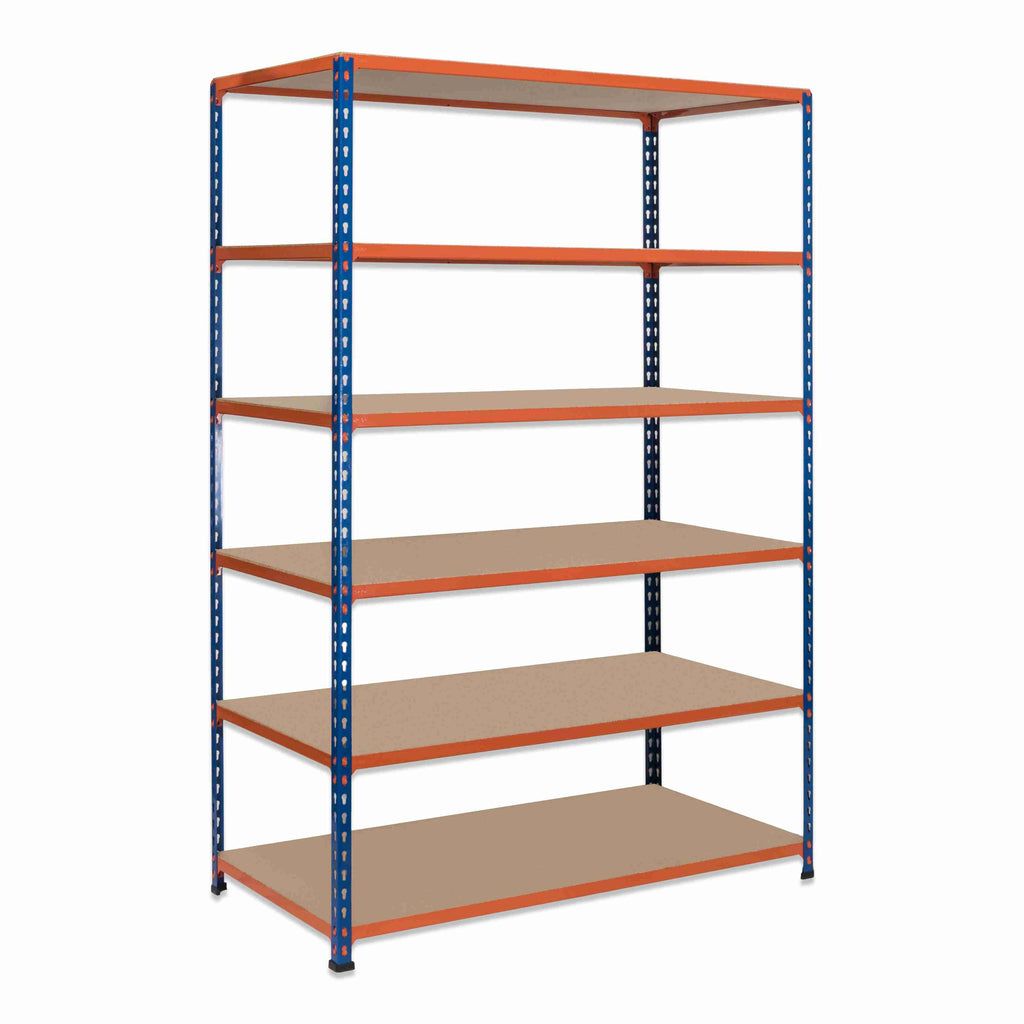

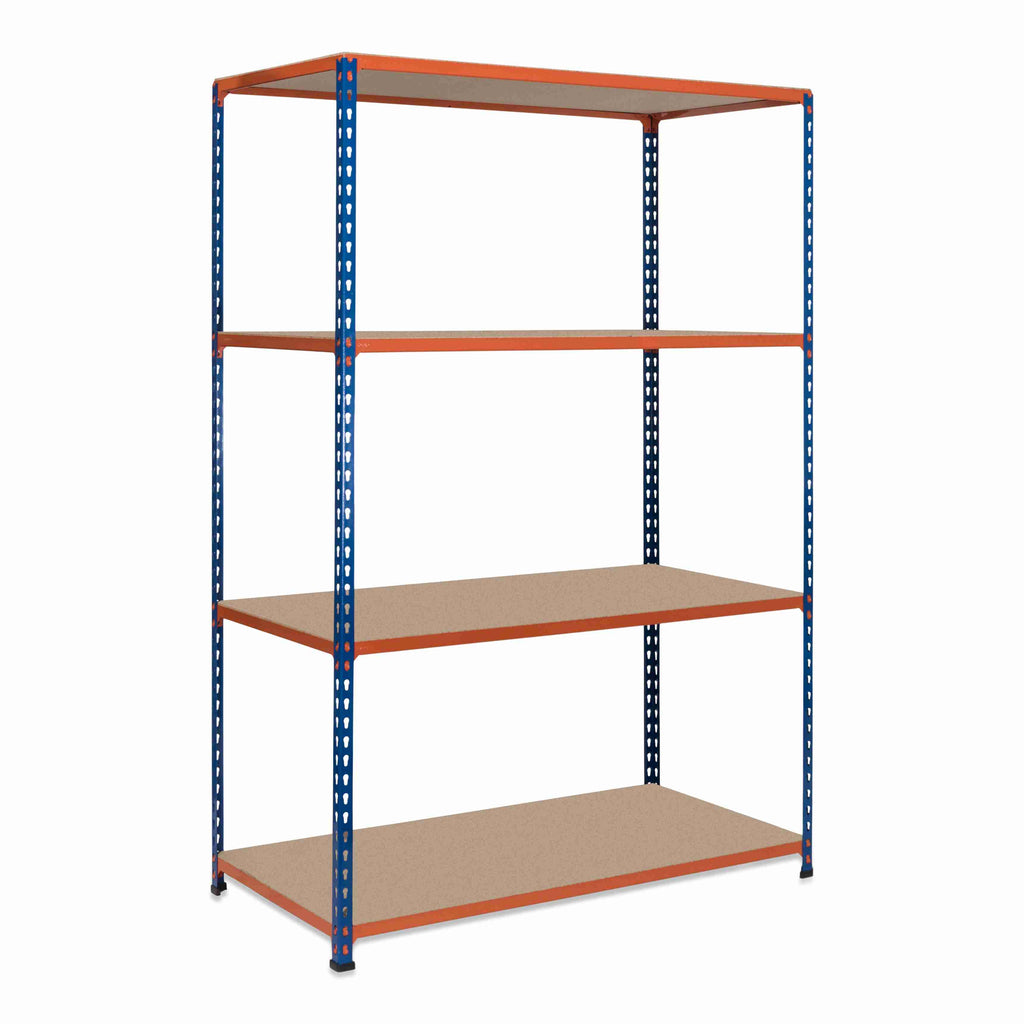

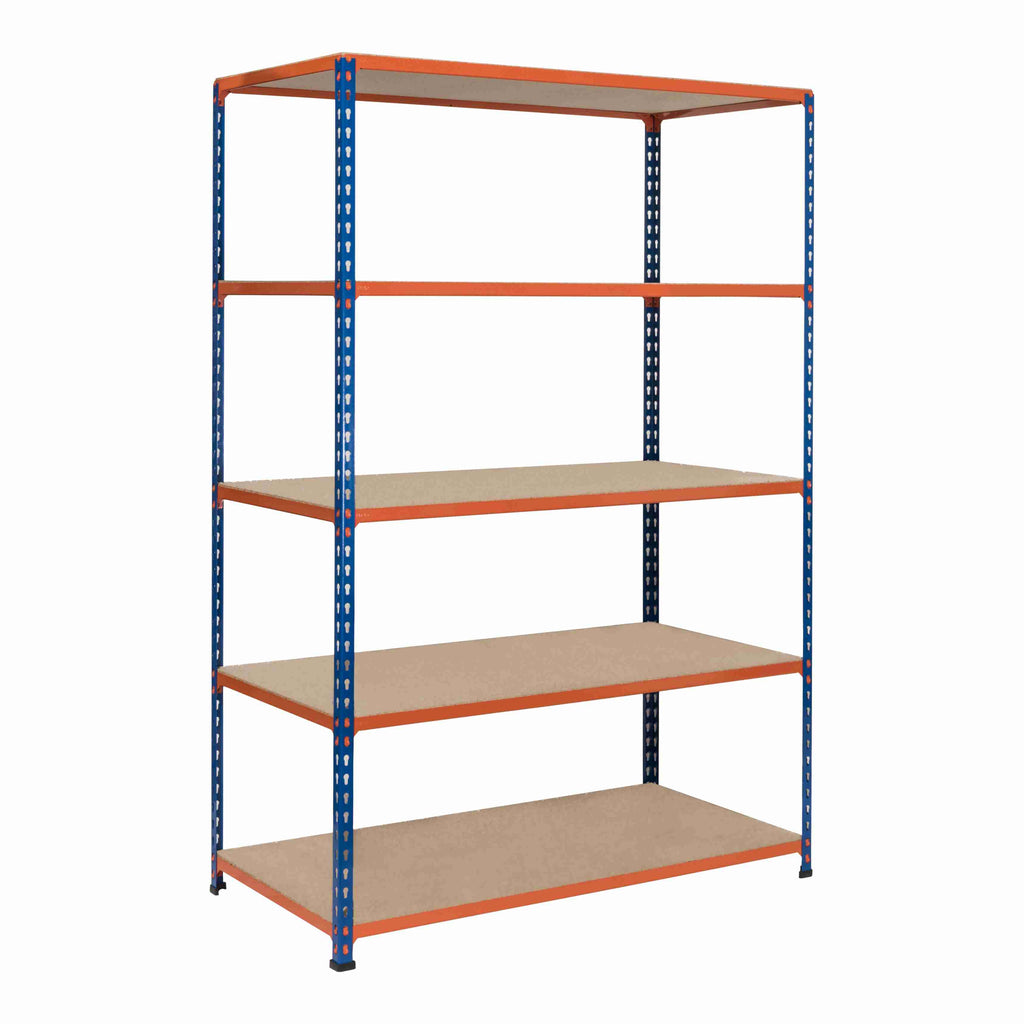

- 4/5/6 x chipboard shelves as standard with each bay

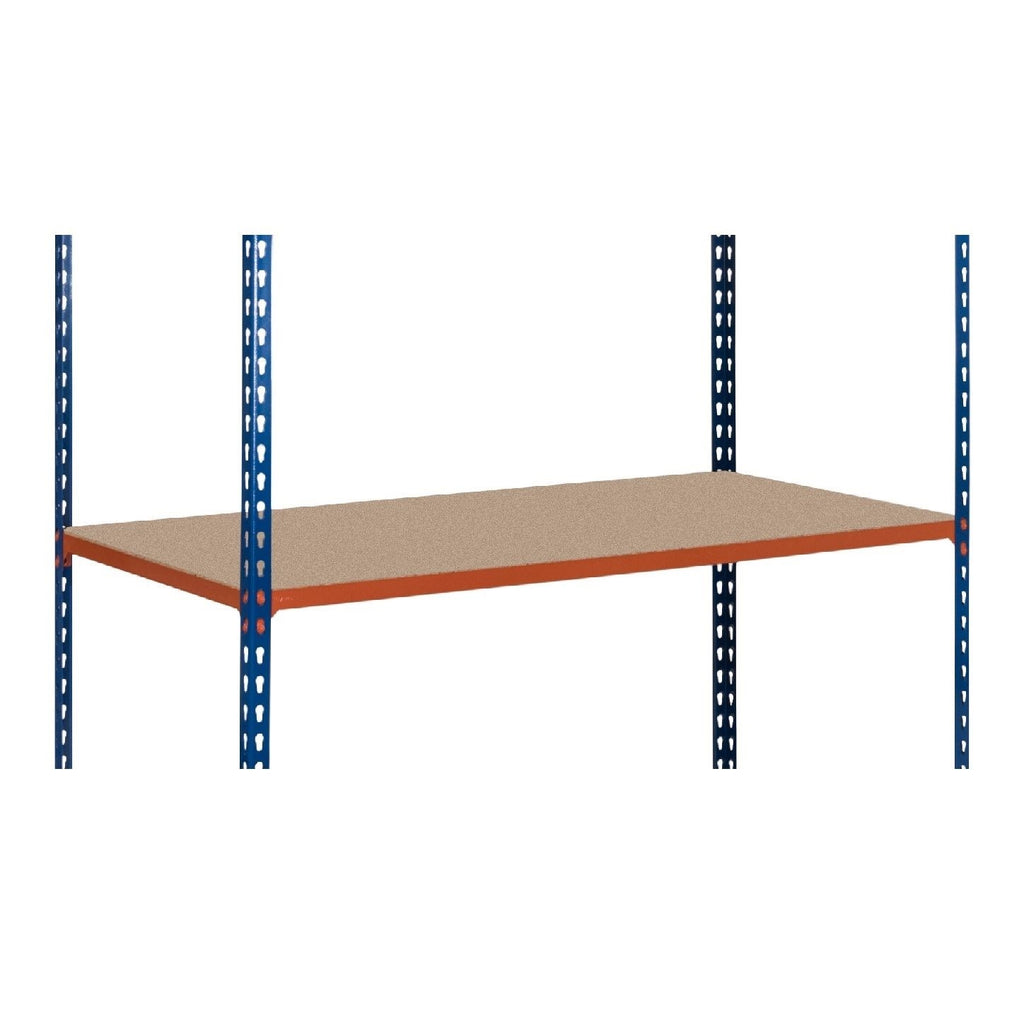

- Purchase additional shelves to suit storage requirements

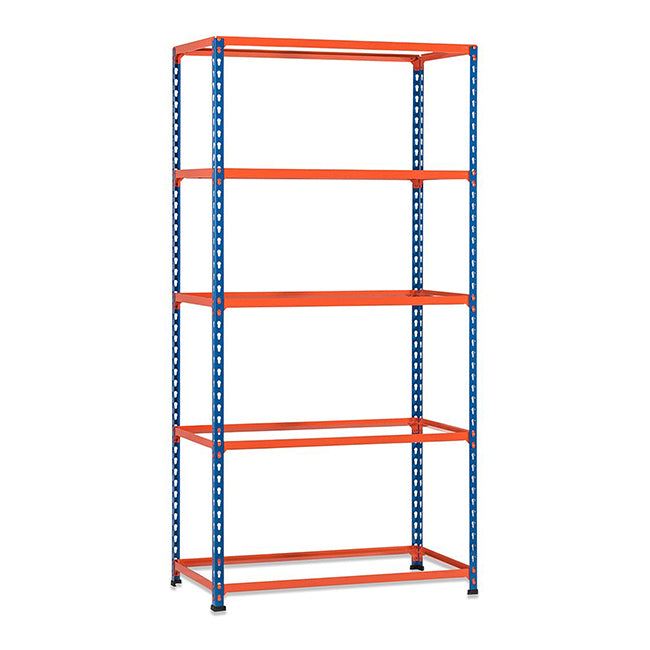

- Single piece uprights with durable powder coated finish
- Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
- Suitable for daily use within a commercial/industrial environment
- Low profile shelf beam design maximises storage space
- Quick & easy construction, assembly mallet provided with each order
- Full range of accessories such as joining tie plates available
- Adjustable shelf height every 3.8cm (1.5 Inches)
- Accessible from both sides, no back cross bracing needed
- Free Rubber Assembly Mallet!
Ideal Uses:
- Regular Picking
- Archive & document storage
- Small parts storage
- Light boxes
- Domestic items

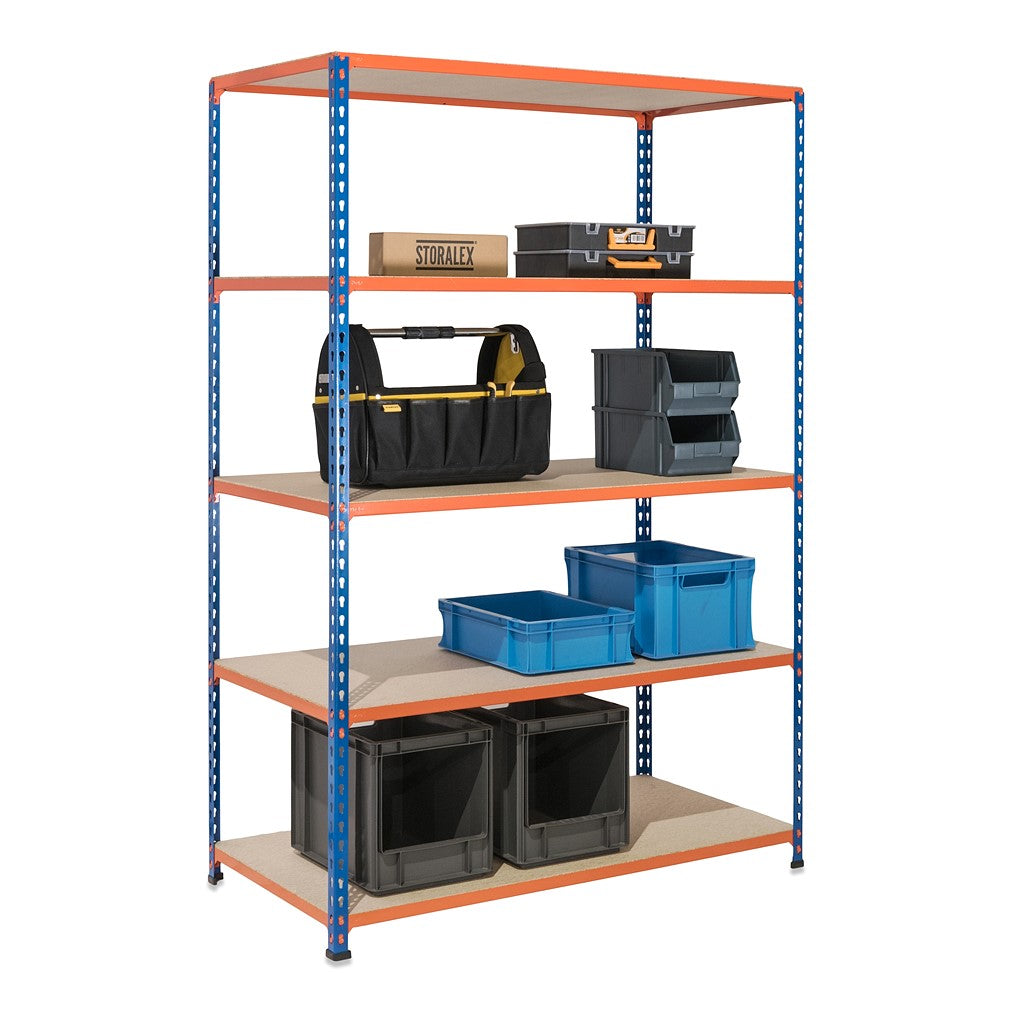

Product Overview
The Storalex SX200 range of medium-duty industrial shelving is ideally suited for frequent use, commercial environments where you need sturdy units that will last a lifetime.

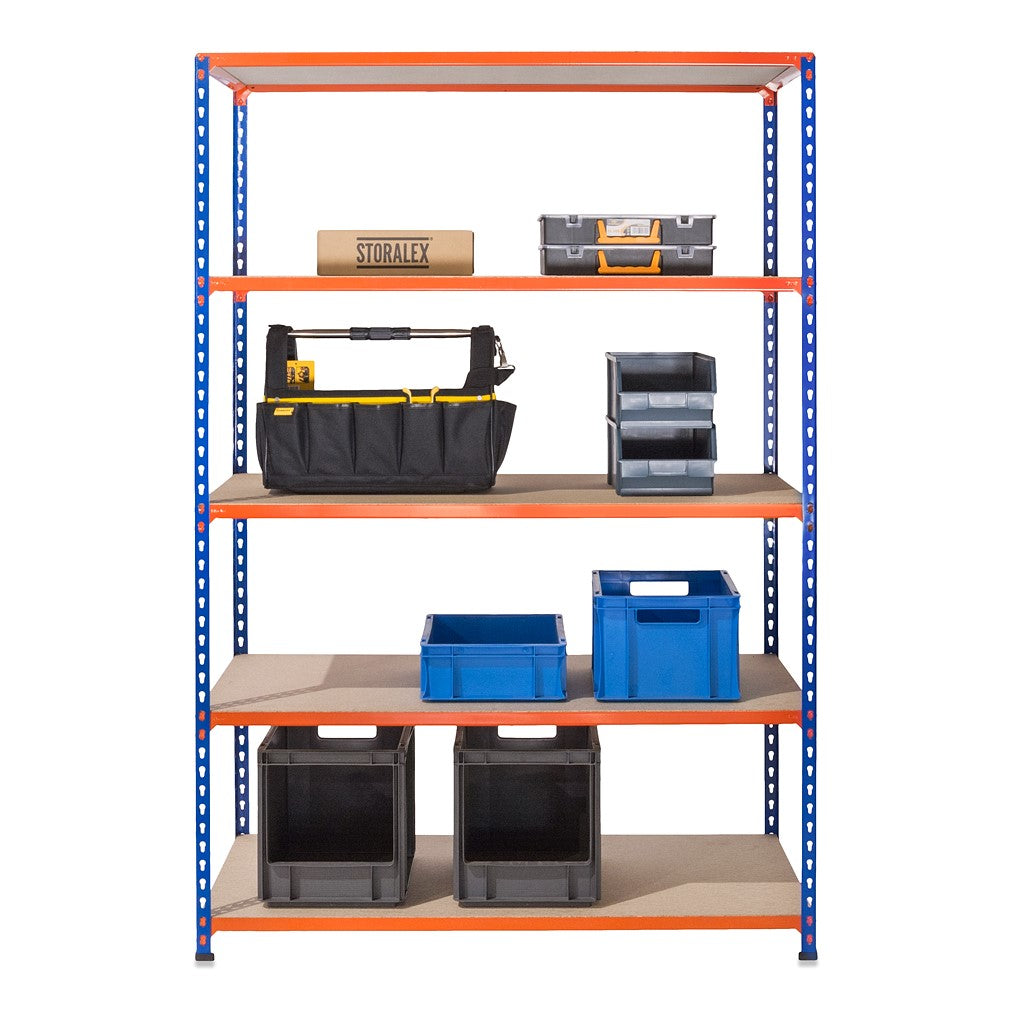

This light industrial range is perfect for businesses storing items in stockrooms, storerooms or heavy duty domestic applications such as garages or workshops. Each shelf can support 200kg UDL*, however If you need to increase the shelf weight capacity the SX340 range is a heavier duty version of this product.
Using a boltless ‘stud & keyhole’ design, these tried and tested units have been sold in the UK for over 25 years. Rigorously tested these commercial grade units also comply with all relevant ISO manufacturing quality requirements.
SX200 Industrial Shelving Guide
Fitting Guide For SX200 Industrial Shelving Units
External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm
|
Data |
610w |
915w |
1220w |
1525w |
|---|---|---|---|---|
| Upright | One Piece | One Piece | One Piece | One Piece |
| Shelf Adjustment (mm) |
38.1 | 38.1 | 38.1 | 38.1 |
| Clear Entry (mm) |
546 | 851 | 1156 | 1461 |
| First Bay External (mm) | 620 | 925 | 1230 | 1535 |
| Additional Bay External (mm) | 627 | 932 | 1237 | 1542 |
| Total Bay Capacity 1830h mm | 1200kg | 1200kg | 1200kg | 1200kg |
| Total Bay Capacity 2440h mm | 1000kg | 1000kg | 1000kg | 1000kg |
| Upright Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 |
| Beam Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 |
| Chipboard Thickness (mm) | 15 | 15 | 15 | 15 |
| Melamine Thickness (mm) | 15 | 15 | 15 | 15 |
| Steel Thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of Shelf (mm) | 30 | 30 | 30 | 30 |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK |
|---|
| Industrial Shelving & Racking | Assembly Instructions - Storalex SX200 & SX340 - Industrial Shelving | DOWNLOAD |
