Key Features this SX800 Heavy Duty Steel Shelving
- Strong galvanised steel panels, tested up to 800kg UDL per shelf (1525w)
- 3/4/5 decks of steel panels as standard with each bay
- Steel support beams on each level for extra reinforcement
- Single piece uprights with durable powder coated finish
- Total load capacity of up to 4,000kg UDL per bay
- Suitable for intensive use within a commercial/industrial environment
- Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
- ISO 9001 quality certification and tested to strict FEM standards
- Purchase additional shelves to suit storage requirements
- Quick & easy construction, assembly mallet provided with each order
- Full range of accessories such as joining tie plates available
- Adjustable shelf height every 3.8cm (1.5 Inches)
- Accessible from both sides, no back cross bracing needed
- Free Rubber Assembly Mallet
Ideal Uses:
- Regular picking
- Bulk storage
- 24/7 frequent use
- Archive & document storage
- Very heavy cartons
- Domestic items

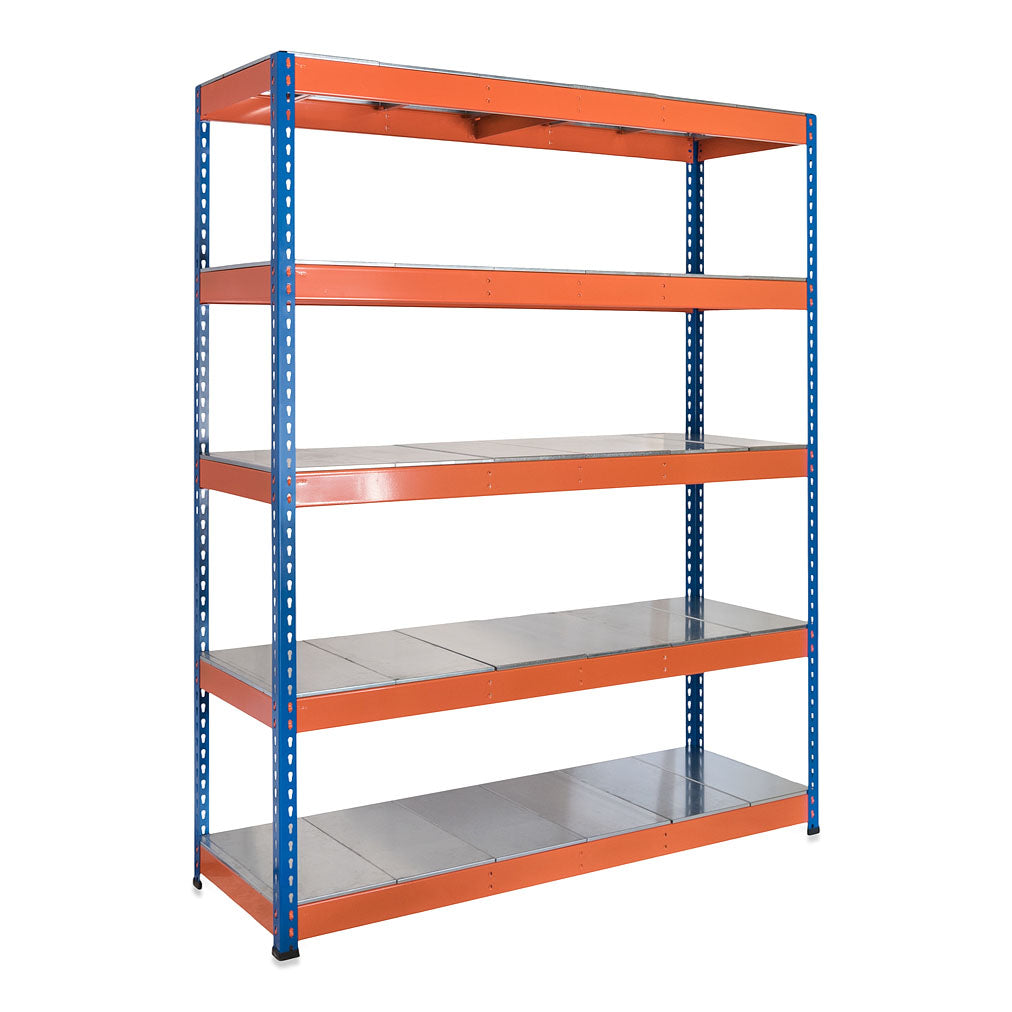

Product Overview
The Storalex SX800 is the ‘heavy weight’ of the steel shelving range, capable of holding up to 800kg UDL per shelf and a whopping 4,000kg per bay. Designed for safely storing incredibly heavy and bulky loads within demanding commercial environments.
UK Businesses have relied on the tried and tested ‘stud and keyhole’ design for over 25 years. For 24/7 environments such as warehouses and factories where safety and practicality is paramount, the SX800 is an incredibly robust and sturdy shelving system designed to cope with around the clock intensive use.
Rigorously tested to strict FEM (European Federation of Material Handling) standards these units also comply with ISO 9001 quality requirements.
SX800 Steel Shelving Guide
Fitting Guide For SX800 Industrial Shelving Units
External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm
|
Data |
1220w |
1525w |
1830w |
2440w |
|---|---|---|---|---|
| Upright | one piece | one piece | one piece | one piece |
| Shelf Adjustment (mm) |
38.1 | 38.1 | 38.1 | 38.1 |
| Clear Entry (mm) |
1135 | 1440 | 1745 | 2355 |
| First Bay External (mm) | 1232 | 1537 | 1842 | 2452 |
| Additional Bay External (mm) | 1239 | 1544 | 1849 | 2459 |
| Total Bay Capacity 1980h | 3200kg | 3200kg | 3200kg | 3200kg |
| Total Bay Capacity 2440h | 2800kg | 2800kg | 2800kg | 2800kg |
| Total Bay Capacity 3050h | 2500kg | 2500kg | 2500kg | 2500kg |
| Upright Steel Thickness (mm) | 2 |
2 |
2 |
2 |
| Beam Steel Thickness (mm) | 2 |
2 |
2 |
2 |
| Chipboard Thickness (mm) | 15 | 15 | 15 | 15 |
| Melamine Thickness (mm) | 15 | 15 | 15 | 15 |
| Steel Thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of Shelf (mm) | 94 |
94 |
94 |
94 |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK |
|---|
| Industrial Shelving & Racking | Assembly Instructions - Storalex SX400 & SX800 - Industrial Shelving | DOWNLOAD |
