Key Features of SX400 Steel Shelving
- Strong galvanised steel panels, tested up to 500kg UDL per shelf

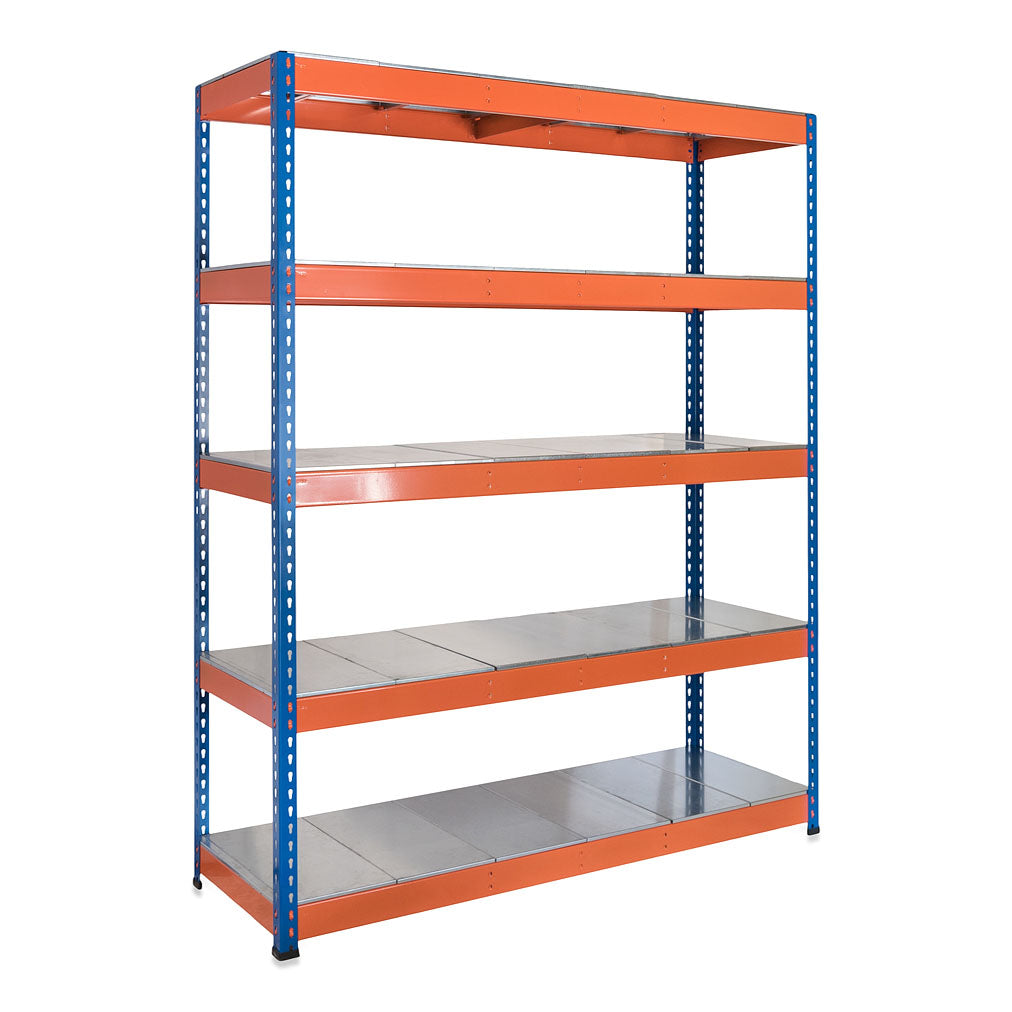

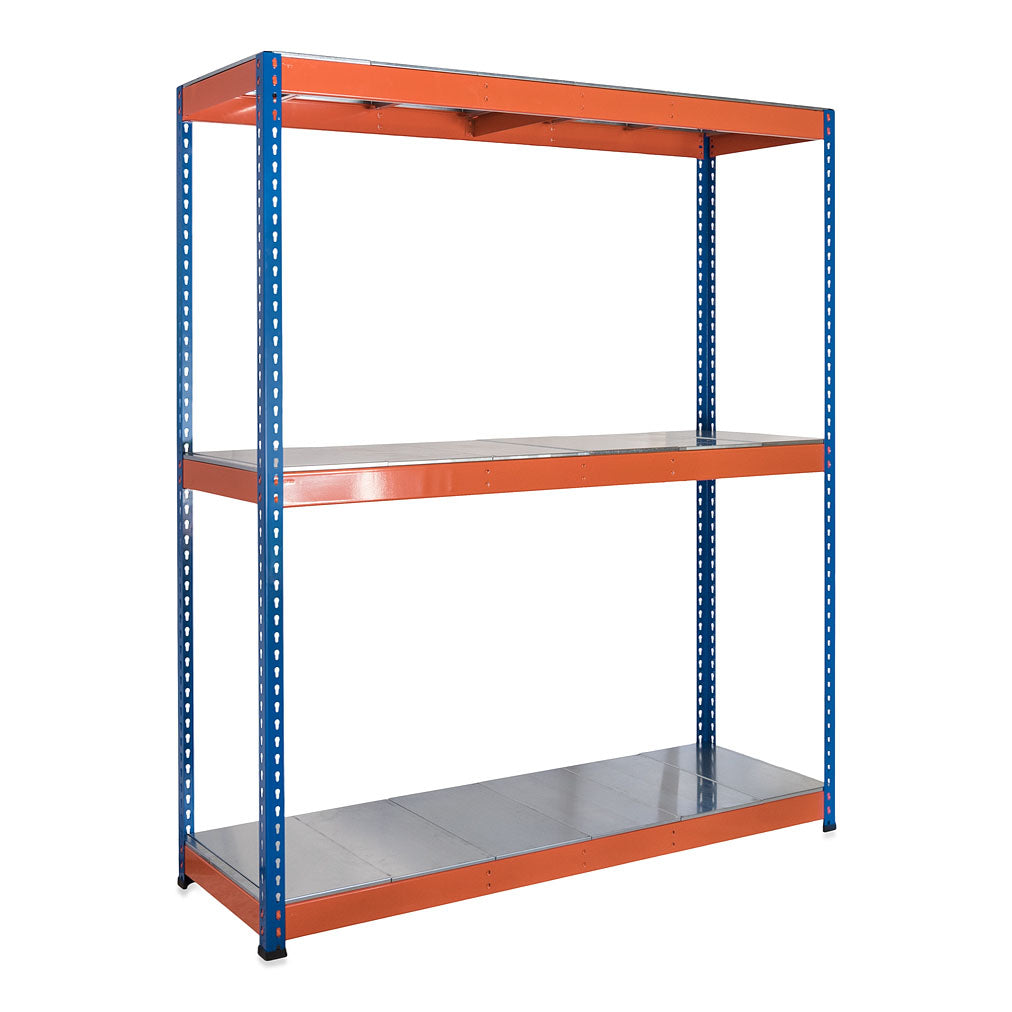

- 3/4/5 decks of steel panels as standard with each bay
- Single piece uprights with durable powder coated finish
- Total load capacity of up to 2,500kg UDL per bay
- Steel support beams on each level for extra reinforcement
- Suitable for daily use within a commercial/industrial environment

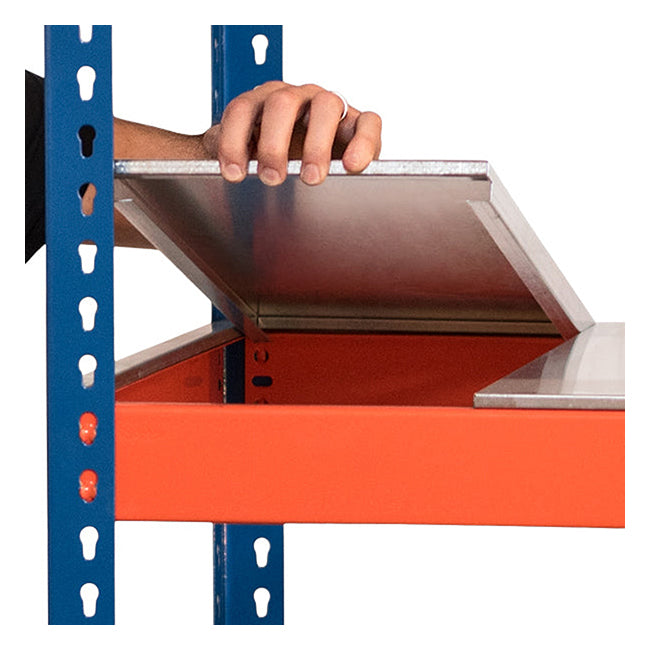

- Boltless ‘stud & keyhole’ design, used within the UK for over 25 years
- Low profile shelf beam design maximises storage space
- Built to ISO manufacturing standards and FEM approved
- Purchase additional shelves to suit storage requirements
- Quick & easy construction, assembly mallet provided with each order
- Full range of accessories such as joining tie plates available
- Adjustable shelf height every 3.8cm (1.5 Inches)
- Accessible from both sides, no back cross bracing needed
- Free Rubber Assembly Mallet
Recommended Uses:
- Regular picking
- Bulk storage
- Archive & document storage
- Heavy cartons
- Domestic items

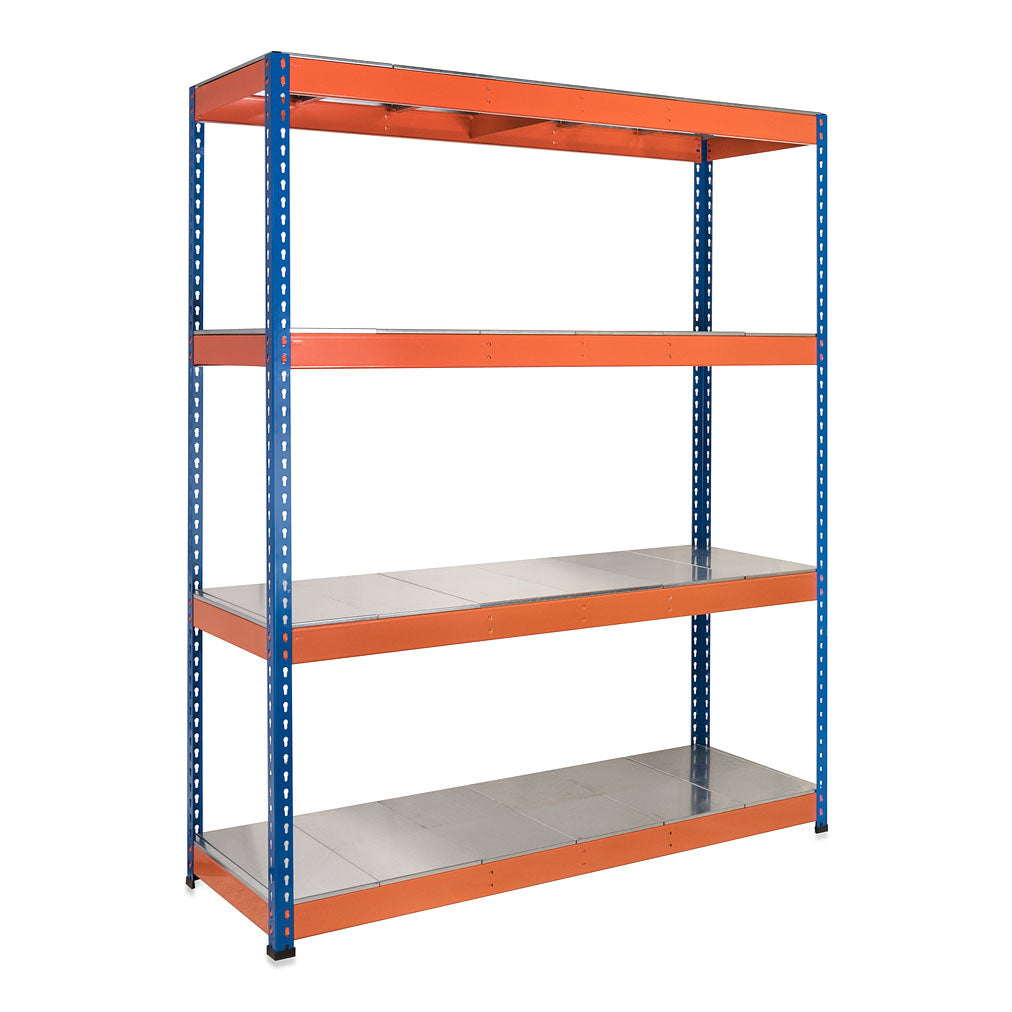

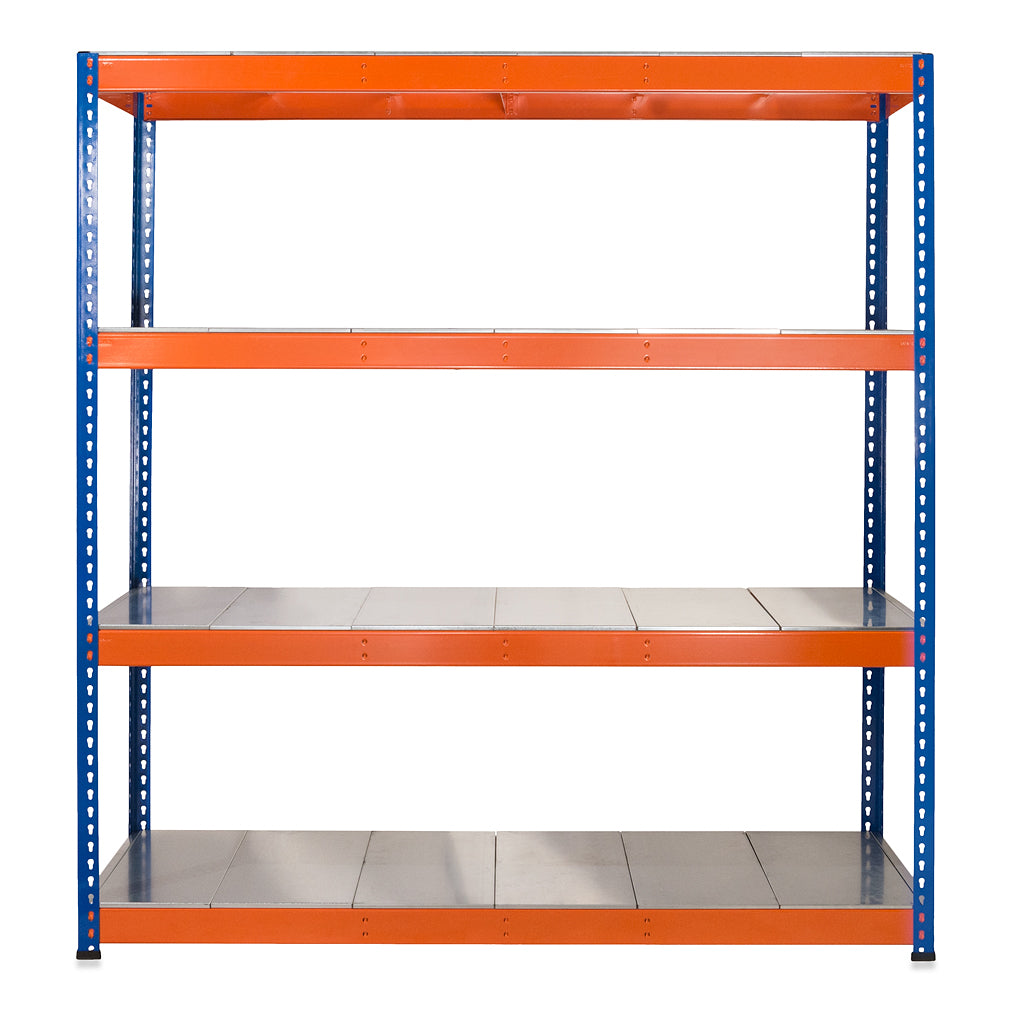

Product Overview
The Storalex SX400 range of heavy duty steel shelving is our most popular commercial system. Commonly installed within warehouses and factories for over 25 years, the SX400 range is one of the most robust and reliable shelving systems on the market.
Capable of safely holding large, heavy and bulky items this range is ideal for retail stockrooms as well as long term archive storage. The tried and tested boltless ‘stud and keyhole’ design makes these quick to assemble and also adjust when storage requirements change.
Rigorously tested to FEM (European Federation of Material Handling) standards these units also comply with all relevant ISO manufacturing quality requirements.
This item is in stock unless otherwise stated, simply order before 4pm and we’ll deliver the very next day. If you’re not after next day delivery, simply choose a convenient delivery date whilst checking out and we’ll deliver on a day of your choice.
Please note to protect large and heavy items during transit your order may be palletised, however the delivery lorry will have a tail lift and delivery is to the kerb side/loading bay.
SX400 Steel Shelving Guide
Fitting Guide For SX400 Industrial Shelving Units
External Height = H+15mm, Pitch = 38.1mm. Clear height between shelves = (No. x pitch) -94mm
|
Data |
1220w |
1525w |
1830w |
2135w |
2440w |
|---|---|---|---|---|---|
| Upright | one piece | one piece | one piece | one piece | one piece |
| Shelf Adjustment (mm) |
38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
| Clear Entry (mm) |
1135 | 1440 | 1745 | 2050 | 2355 |
| First Bay External (mm) | 1232 | 1537 | 1842 | 2147 | 2452 |
| Additional Bay External (mm) | 1239 | 1544 | 1849 | 2154 | 2459 |
| Total Bay Capacity 1677h | 1600kg | 1600kg | 1600kg | 1600kg | 1600kg |
| Total Bay Capacity 1980h | 1600kg | 1600kg | 1600kg | 1600kg | 1600kg |
| Total Bay Capacity 3050h | 1320kg | 1320kg | 1320kg | 1320kg | 1320kg |
| Upright Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Beam Steel Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Chipboard Thickness (mm) | 15 | 15 | 15 | 15 | 15 |
| Melamine Thickness (mm) | 15 | 15 | 15 | 15 | 15 |
| Steel Thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of Shelf (mm) | 94 |
94 |
94 |
94 |
94 |
| PRODUCT CATEGORY | PRODUCT DESCRIPTION | DOWNLOAD LINK |
|---|
| Industrial Shelving & Racking | Assembly Instructions - Storalex SX400 & SX800 - Industrial Shelving | DOWNLOAD |
